Dubbo + Zipkin + Brave实现全链路追踪

最近写了一个链路追踪Demo分享下，实现了链路追踪过程中数据的记录，还有能扩展的地方，后期再继续补充。

原理参考上面文章 《Dubbo链路追踪——生成全局ID（traceId）》

源码地址

实现链路追踪的目的

  • 服务调用的流程信息，定位服务调用链
  • 记录调用入参及返回值信息，方便问题重现
  • 记录调用时间线，代码重构及调优处理
  • 调用信息统计

分布式跟踪系统还有其他比较成熟的实现，例如：Naver的Pinpoint、Apache的HTrace、阿里的鹰眼Tracing、京东的Hydra、新浪的Watchman，美团点评的CAT，skywalking等。 本次主要利用Dubbo数据传播特性扩展Filter接口来实现链路追踪的目的

重点主要是zipkin及brave使用及特性,当前brave版本为 5.2.0 为 2018年8月份发布的release版本 , zipkin版本为2.2.1 所需JDK为1.8

快速启动zipkin

下载最新的zipkin并启动

wget -O zipkin.jar 'https://search.maven.org/remote_content?g=io.zipkin.java&a=zipkin-server&v=LATEST&c=exec'
java -jar zipkin.jar

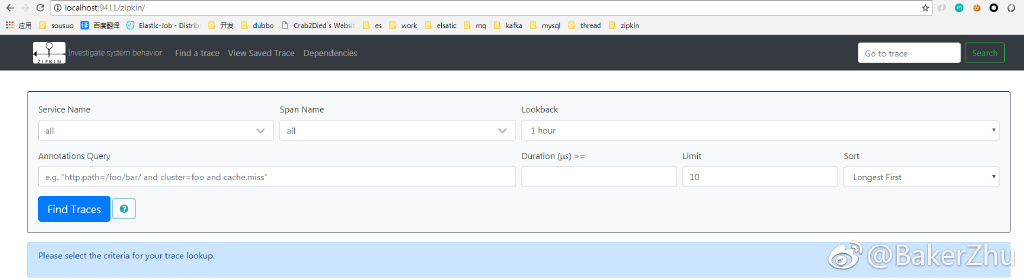

输入 http://localhost:9411/zipkin/ 进入WebUI界面如下 zipUI

    • *

核心源码

代码的初步版本：方便描述

import brave.Span;
import brave.Tracer;
import brave.Tracing;
import brave.propagation.*;
import brave.sampler.Sampler;
import com.alibaba.dubbo.common.Constants;
import com.alibaba.dubbo.common.extension.Activate;
import com.alibaba.dubbo.common.json.JSON;
import com.alibaba.dubbo.common.logger.Logger;
import com.alibaba.dubbo.common.logger.LoggerFactory;
import com.alibaba.dubbo.remoting.exchange.ResponseCallback;
import com.alibaba.dubbo.rpc.*;
import com.alibaba.dubbo.rpc.protocol.dubbo.FutureAdapter;
import com.alibaba.dubbo.rpc.support.RpcUtils;
import zipkin2.codec.SpanBytesEncoder;
import zipkin2.reporter.AsyncReporter;
import zipkin2.reporter.Sender;
import zipkin2.reporter.okhttp3.OkHttpSender;

import java.io.IOException;
import java.net.InetSocketAddress;
import java.util.Map;
import java.util.concurrent.Future;
import java.util.concurrent.TimeUnit;

/**
 * Created with IntelliJ IDEA.
 *
 * @author: bakerZhu
 * @description:
 * @modifytime:
 */
@Activate(group = {Constants.PROVIDER, Constants.CONSUMER})
public class TracingFilter  implements Filter {

    private static final Logger log = LoggerFactory.getLogger(TracingFilter.class);

    private static Tracing tracing;
    private static Tracer tracer;
    private static TraceContext.Extractor<Map<String, String>> extractor;
    private static TraceContext.Injector<Map<String, String>> injector;

    static final Propagation.Getter<Map<String, String>, String> GETTER =
            new Propagation.Getter<Map<String, String>, String>() {
                @Override
                public String get(Map<String, String> carrier, String key) {
                    return carrier.get(key);
                }

                @Override
                public String toString() {
                    return "Map::get";
                }
            };

    static final Propagation.Setter<Map<String, String>, String> SETTER =
            new Propagation.Setter<Map<String, String>, String>() {
                @Override
                public void put(Map<String, String> carrier, String key, String value) {
                    carrier.put(key, value);
                }

                @Override
                public String toString() {
                    return "Map::set";
                }
            };

    static {
        // 1
        Sender sender = OkHttpSender.create("http://localhost:9411/api/v2/spans");
        // 2
        AsyncReporter asyncReporter = AsyncReporter.builder(sender)
                .closeTimeout(500, TimeUnit.MILLISECONDS)
                .build(SpanBytesEncoder.JSON_V2);
        // 3
        tracing = Tracing.newBuilder()
                .localServiceName("tracer-client")
                .spanReporter(asyncReporter)
                .sampler(Sampler.ALWAYS_SAMPLE)
                .propagationFactory(ExtraFieldPropagation.newFactory(B3Propagation.FACTORY, "user-name"))
                .build();
        tracer = tracing.tracer();
        // 4
        // 4.1
        extractor = tracing.propagation().extractor(GETTER);
        // 4.2
        injector = tracing.propagation().injector(SETTER);
    }



    public TracingFilter() {
    }

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {


        RpcContext rpcContext = RpcContext.getContext();
        // 5
        Span.Kind kind = rpcContext.isProviderSide() ? Span.Kind.SERVER : Span.Kind.CLIENT;
        final Span span;
        if (kind.equals(Span.Kind.CLIENT)) {
            //6
            span = tracer.nextSpan();
            //7
            injector.inject(span.context(), invocation.getAttachments());
        } else {
            //8
            TraceContextOrSamplingFlags extracted = extractor.extract(invocation.getAttachments());
            //9
            span = extracted.context() != null ? tracer.joinSpan(extracted.context()) : tracer.nextSpan(extracted);
        }

        if (!span.isNoop()) {
            span.kind(kind).start();
            //10
            String service = invoker.getInterface().getSimpleName();
            String method = RpcUtils.getMethodName(invocation);
            span.kind(kind);
            span.name(service + "/" + method);
            InetSocketAddress remoteAddress = rpcContext.getRemoteAddress();
            span.remoteIpAndPort(
                    remoteAddress.getAddress() != null ? remoteAddress.getAddress().getHostAddress() : remoteAddress.getHostName(),remoteAddress.getPort());
        }

        boolean isOneway = false, deferFinish = false;
        try (Tracer.SpanInScope scope = tracer.withSpanInScope(span)){
            //11
            collectArguments(invocation, span, kind);
            Result result = invoker.invoke(invocation);

            if (result.hasException()) {
                onError(result.getException(), span);
            }
            // 12
            isOneway = RpcUtils.isOneway(invoker.getUrl(), invocation);
            // 13
            Future<Object> future = rpcContext.getFuture();

            if (future instanceof FutureAdapter) {
                deferFinish = true;
                ((FutureAdapter) future).getFuture().setCallback(new FinishSpanCallback(span));// 14
            }
            return result;
        } catch (Error | RuntimeException e) {
            onError(e, span);
            throw e;
        } finally {
            if (isOneway) { // 15
                span.flush();
            } else if (!deferFinish) { // 16
                span.finish();
            }
        }
    }

    static void onError(Throwable error, Span span) {
        span.error(error);
        if (error instanceof RpcException) {
            span.tag("dubbo.error_msg", RpcExceptionEnum.getMsgByCode(((RpcException) error).getCode()));
        }
    }

    static void collectArguments(Invocation invocation, Span span, Span.Kind kind) {
        if (kind == Span.Kind.CLIENT) {
            StringBuilder fqcn = new StringBuilder();
            Object[] args = invocation.getArguments();
            if (args != null && args.length > 0) {
                try {
                    fqcn.append(JSON.json(args));
                } catch (IOException e) {
                    log.warn(e.getMessage(), e);
                }
            }
            span.tag("args", fqcn.toString());
        }
    }



    static final class FinishSpanCallback implements ResponseCallback {
        final Span span;

        FinishSpanCallback(Span span) {
            this.span = span;
        }

        @Override
        public void done(Object response) {
            span.finish();
        }

        @Override
        public void caught(Throwable exception) {
            onError(exception, span);
            span.finish();
        }
    }
    // 17
    private enum RpcExceptionEnum {
        UNKNOWN_EXCEPTION(0, "unknown exception"),
        NETWORK_EXCEPTION(1, "network exception"),
        TIMEOUT_EXCEPTION(2, "timeout exception"),
        BIZ_EXCEPTION(3, "biz exception"),
        FORBIDDEN_EXCEPTION(4, "forbidden exception"),
        SERIALIZATION_EXCEPTION(5, "serialization exception"),;

        private int code;

        private String msg;

        RpcExceptionEnum(int code, String msg) {
            this.code = code;
            this.msg = msg;
        }

        public static String getMsgByCode(int code) {
            for (RpcExceptionEnum error : RpcExceptionEnum.values()) {
                if (code == error.code) {
                    return error.msg;
                }
            }
            return null;
        }
    }
}
  1. 构建客户端发送工具
  2. 构建异步reporter
  3. 构建tracing上下文
  4. 初始化injector 和 Extractor [tab]4.1 extractor 指数据提取对象,用于在carrier中提取TraceContext相关信息或者采样标记信息到TraceContextOrSamplingFlags 中 -4.2 injector 用于将TraceContext中的各种数据注入到carrier中,其中carrier一半是指数据传输中的载体,类似于Dubbo中Invocation中的attachment(附件集合)
  5. 判断此次调用是作为服务端还是客户端
  6. rpc客户端调用会从ThreadLocal中获取parent的 TraceContext ,为新生成的Span指定traceId及 parentId如果没有parent traceContext 则生成的Span为 root span
  7. 将Span绑定的TraceContext中 属性信息 Copy 到 Invocation中达到远程参数传递的作用
  8. rpc服务提供端 , 从invocation中提取TraceContext相关信息及采样数据信息
  9. 生成span , 兼容初次服务端调用
  10. 记录接口信息及远程IP Port
  11. 将创建的Span 作为当前Span (可以通过Tracer.currentSpan 访问到它) 并设置查询范围
  12. oneway调用即只请求不接受结果
  13. 如果future不为空则为 async 调用 在回调中finish span
  14. 设置异步回调，回调代码执行span finish() .
  15. oneway调用 因为不需等待返回值 即没有 cr (Client Receive) 需手动flush()
  16. 同步调用 业务代码执行完毕后需手动finish()
  17. 设置枚举类 与 Dubbo中RpcException保持对应
    • *

测试项

  • Dubbo sync async oneway 测试
  • RPC异常测试
  • 普通业务异常测试
  • 并发测试
    • *

配置方式

POM依赖添加

<dependency>
    <groupId>com.github.baker</groupId>
    <artifactId>Tracing</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

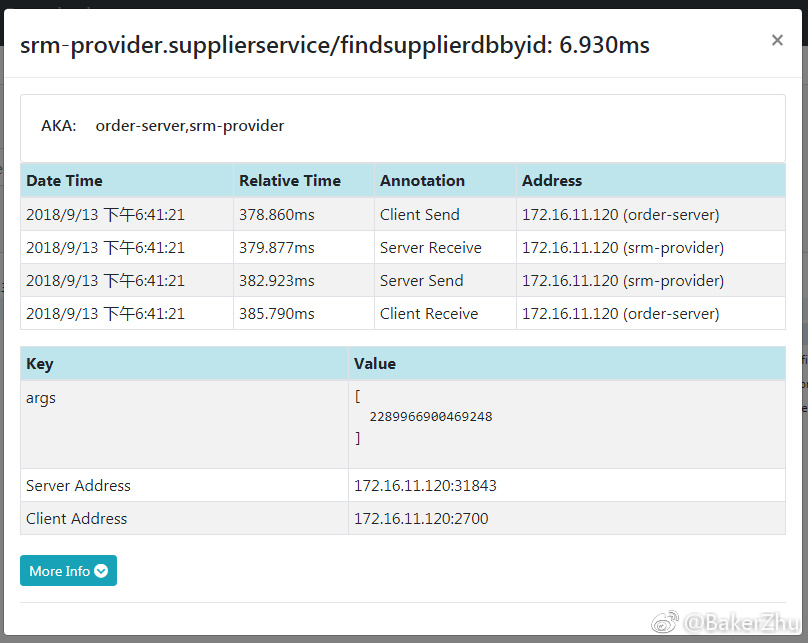

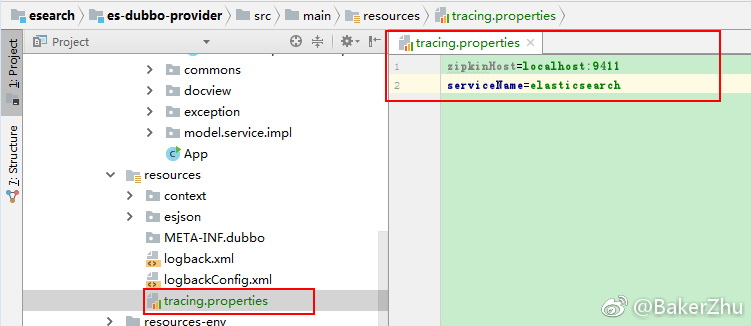

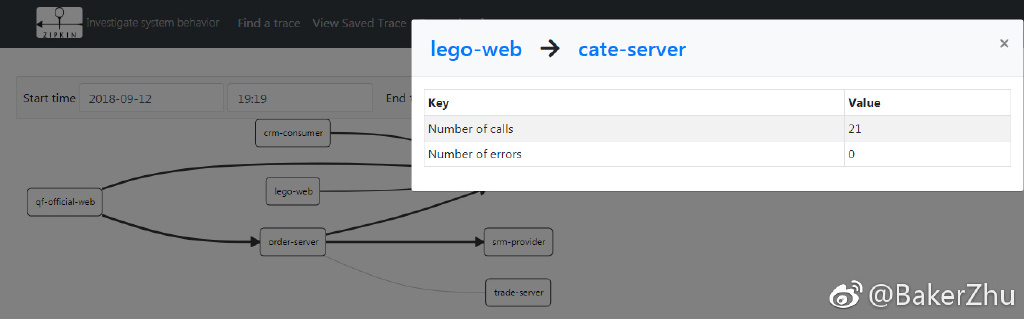

资源目录根路径下添加tracing.properties文件 tracing.properties 一次调用信息 tracing.properties 调用链 tracing.properties 调用成功失败汇总 tracing.properties zipkinHost 指定zipkin服务器IP:PORT 默认为localhost:9411 serviceName 指定应用名称 默认为trace-default

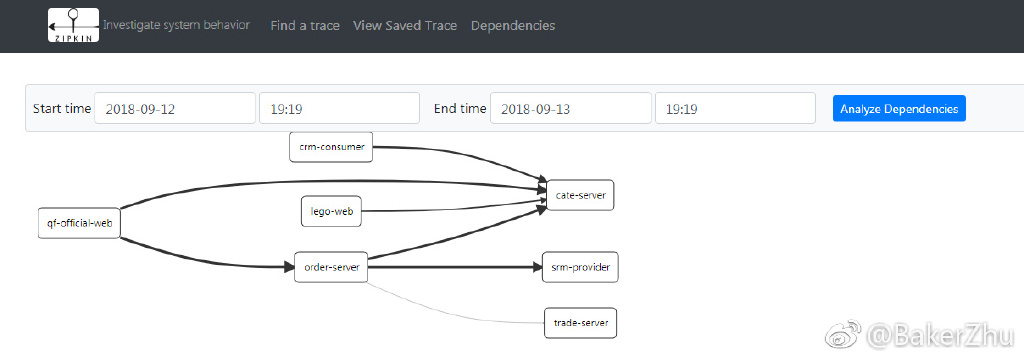

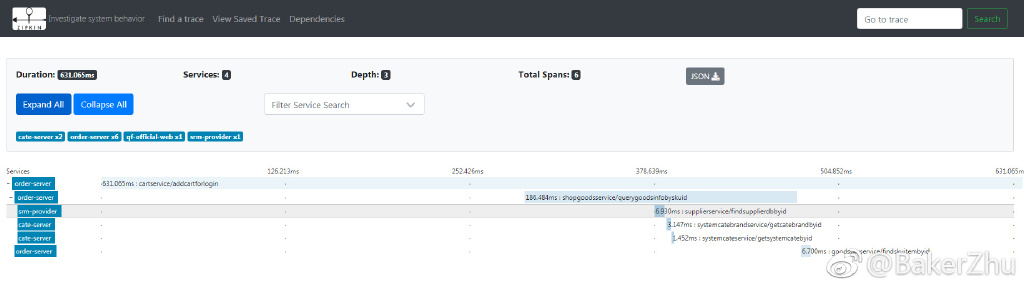

调用链： tracing.properties

待扩展项

  • 抽象数据传输（扩展Kafka数据传输）
  • 调用返回值数据打印
  • 更灵活的配置方式

源码地址
