PDF(Portable Document Format的简称,意为“便携式文档格式”),是由Adobe Systems用于与应用程序、操作系统、硬件无关的方式进行文件交换所发展出的文件格式。PDF文件以PostScript语言图象模型为基础,无论在哪种打印机上都可保证精确的颜色和准确的打印效果,即PDF会忠实地再现原稿的每一个字符、颜色以及图象。(来自百度百科的介绍)。
可以用来处理pdf文件的第三方jar包主要有Apache PDFBox,iText (收费,功能更强大,功能更全面,最新版本itext7),XDocReport (将docx转化为pdf,需要借助poi和itext).

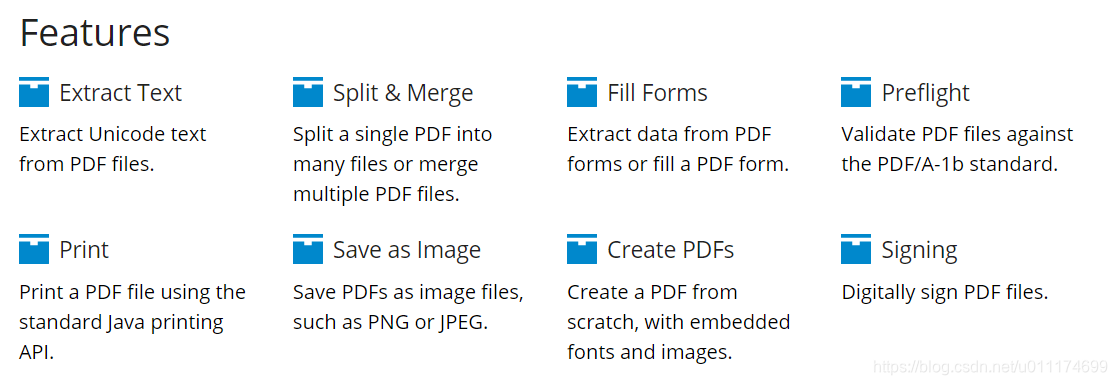

Apache PDFBox中的主要功能:创建文本,提取文本,合并文档,分割文档,删除页面等。

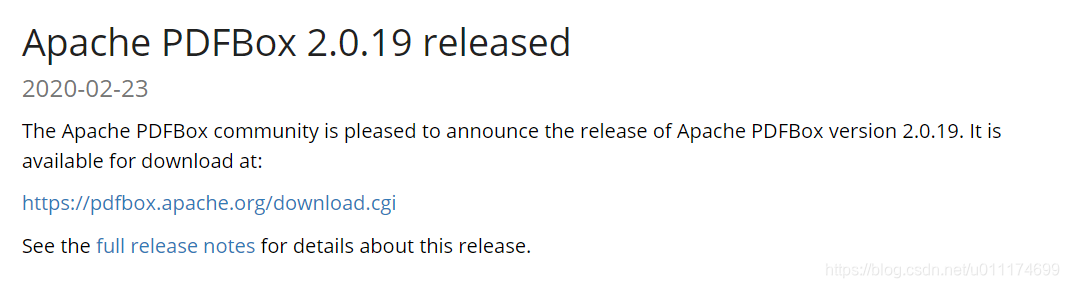

官网最新版是2.0.19
写了一个测试类,pdfbox非常不好用,在设置字体时,用的是内置常量,运行代码debug发现查找本地字体需要耗费很长时间,还有就是写入文档的时候,时间太久了,非常不好用,而且jar包中的字体类,内置的字体没有支持中文的字体,对中文不友好,不推荐使用。
这是测试类:(可以看一下)
import org.apache.pdfbox.pdmodel.PDDocument;import org.apache.pdfbox.pdmodel.PDPage;import org.apache.pdfbox.pdmodel.PDPageContentStream;import org.apache.pdfbox.pdmodel.common.PDRectangle;import org.apache.pdfbox.pdmodel.font.PDFont;import org.apache.pdfbox.pdmodel.font.PDType1Font;import org.junit.Test; import java.io.File;import java.io.IOException; /** * @author xiaomifeng1010 * @version 1.0 * @date: 2020/5/3 15:11 */ public class ApachePDFBoxTest { @Test public void createPdfFileTest(){ // 创建文档页面(设置为矩形A4大小) PDPage page = new PDPage(PDRectangle.A4); // 创建pdf文档对象,以及页面内容流对象 try ( PDDocument pdfDocument=new PDDocument();PDPageContentStream pageContentStream=new PDPageContentStream(pdfDocument,page)){ pdfDocument.addPage(page);// 设置字体为Helvetica-Bold或TIMES_ROMAN;,类库中没有中文字体,程序会去查找本地是否安装了该字体,查找非常慢 PDFont font= PDType1Font.TIMES_ROMAN;// 开始页面的文本操作 pageContentStream.beginText(); pageContentStream.setFont(font,12); pageContentStream.moveTextPositionByAmount(100,700);// 因为jar包中自带的没有中文字体,所以写入中文会出异常 pageContentStream.showText("hello"); // 结束页面文本操作 pageContentStream.endText();// pdf文档保存在本项目所在磁盘下data目录下 File pdfFile=new File("E:"+File.separator+"data"+File.separator +"test.pdf");// 保存pdf文档,写入非常慢!!测试了一下,写了一句hello,保存用了十几分钟,不知道为什么 pdfDocument.save(pdfFile); System.out.println("文件写入成功"); } catch (IOException e) { e.printStackTrace(); }finally{// 流虽然都关闭了,但是还是无法删除文件,所以手动调用一下gc System.gc(); System.out.println("执行垃圾回收"); } }}
写入到文件非常慢(即执行save方法时),不推荐使用pdfbox.

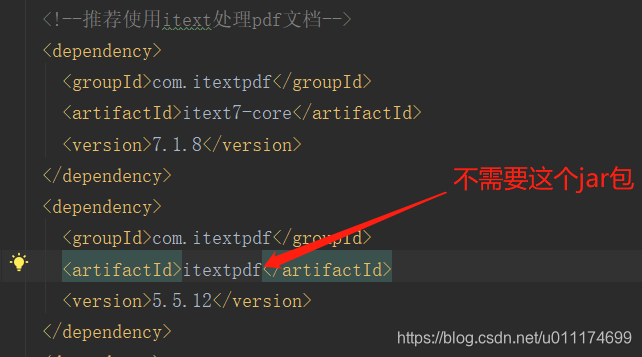

处理pdf文件首推itext,使用7.1.8版本,导入jar包时候,选择itext-core这个jar包(最新版就是7.x系列),在idea中输入itext还会显示一个itextpdf,这个jar包还是5.x系列版本(属于旧版本)
<!--推荐使用itext处理pdf文档--> <dependency> <groupId>com.itextpdf</groupId> <artifactId>itext7-core</artifactId> <version>7.1.8</version> </dependency>
itext7-core包含了很多jar包,其中也包含了font-asian(可以用来处理中文字体)

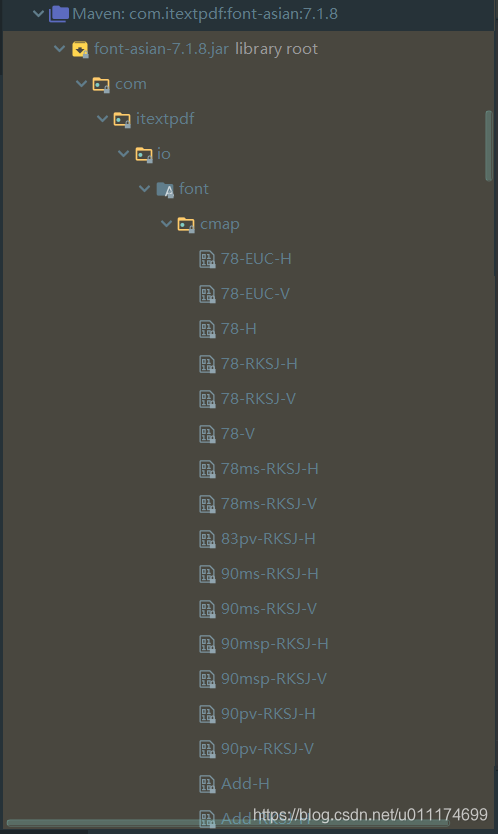

font-asian.jar里面是有两种文件,展开cmap包,一种是cmap文件(编码文件),另一种是.properties文件(与字体程序有关)

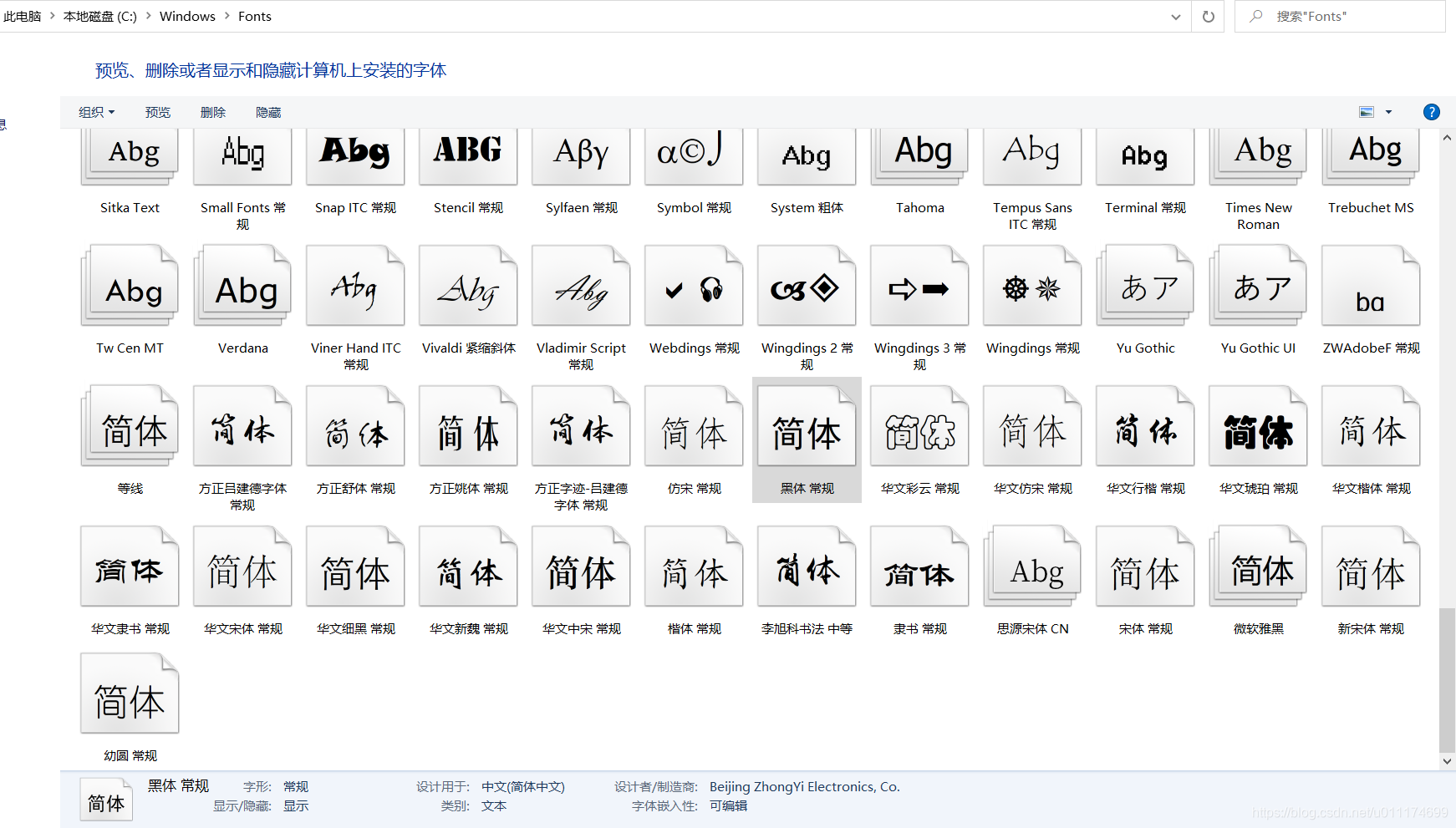

设置中文字体时,还可以用window中已安装的字体,给出字体路径,每个字体的名称可以右键查看属性
import com.itextpdf.io.font.PdfEncodings;import com.itextpdf.kernel.colors.ColorConstants;import com.itextpdf.kernel.colors.DeviceGray;import com.itextpdf.kernel.colors.DeviceRgb;import com.itextpdf.kernel.font.PdfFont;import com.itextpdf.kernel.font.PdfFontFactory;import com.itextpdf.kernel.pdf.PdfDocument;import com.itextpdf.kernel.pdf.PdfWriter;import com.itextpdf.layout.Document;import com.itextpdf.layout.element.Paragraph;import com.itextpdf.layout.element.Table;import com.itextpdf.layout.property.HorizontalAlignment;import com.itextpdf.layout.property.TextAlignment;import com.itextpdf.layout.property.UnitValue;import com.itextpdf.layout.property.VerticalAlignment;import com.xiaomifeng1010.beanutils.bean.Person;import org.junit.Test; import java.io.File;import java.io.FileNotFoundException;import java.io.IOException;import java.util.ArrayList;import java.util.List; /** * 使用itext操作pdf文档,在pdf中创建一个表格,将person属性存放到表格中。 * @author xiaomifeng1010 * @version 1.0 * @date: 2020/5/3 19:49 */public class ITextTest {// 保存文件的路径(当前项目所在磁盘下data目录下,pdf目录下的simple_table.pdf文件) public String filePath=File.separator +"data"+File.separator+"pdf"+File.separator +"simple_table.pdf";// 创建文件 File file=new File(filePath); /** * 测试在pdf中写入一个表格 */ @Test public void createPdfFileTest() { if (!file.exists()) { file.getParentFile().mkdirs(); } try {// 设置字体为HELVETICA(不支持中文)// PdfFont pdfFont= PdfFontFactory.createFont(StandardFonts.HELVETICA);// 设置中文字体为黑体常规(传入一个字体路径或者itext中内置支持的字体,如上) PdfFont documentFont=PdfFontFactory.createFont("C:\\Windows\\Fonts\\simhei.ttf", PdfEncodings.IDENTITY_H,true);// 使用font-asian中的字体,设置字体华文宋体(STSong-Light) PdfFont tableFont=PdfFontFactory.createFont("STSong-Light", "UniGB-UCS2-H",true); PdfDocument pdfDocument=new PdfDocument(new PdfWriter(filePath)); Document document=new Document(pdfDocument);// 设置文本居中对齐 document.setTextAlignment(TextAlignment.CENTER); document.setHorizontalAlignment(HorizontalAlignment.CENTER);// 设置文档字体 document.setFont(documentFont);// 表格标题 Paragraph tableTitle=new Paragraph("人员信息表");// 设置表格标题字体和颜色(段落) tableTitle.setFont(documentFont).setFontColor(DeviceGray.BLACK); document.add(tableTitle); Table table=new Table(UnitValue.createPercentArray(3)).useAllAvailableWidth();// 设置表格字体 table.setFont(tableFont);// 设置表格列宽 table.setWidth(200);// 设置表格背景色 table.setBackgroundColor(ColorConstants.LIGHT_GRAY);// 设置表格文本居中对齐 table.setTextAlignment(TextAlignment.CENTER);// 设置表格垂直对齐方式 table.setVerticalAlignment(VerticalAlignment.MIDDLE);// 设置表格水平对齐方式 table.setHorizontalAlignment(HorizontalAlignment.CENTER);// Cell cell=new Cell();// 设置单元格背景色为深灰色// cell.setBackgroundColor(ColorConstants.DARK_GRAY); List<Person> persons=new ArrayList<>(); persons.add(new Person(12,"Albert","male")); persons.add(new Person(15,"Johnson","male")); persons.add(new Person(22,"Larry","female")); table.addCell(new Paragraph("姓名")); table.addCell(new Paragraph("年龄")); table.addCell(new Paragraph("性别")); for (Person person : persons) {// 更精确的颜色可以使用new DeviceRgb()传入三原色的数值[0-255]来设置// new DeviceRgb(13,23,5); table.addCell(new Paragraph(person.getName()).setFontColor(DeviceRgb.RED)); table.addCell(new Paragraph(String.valueOf(person.getAge())).setFontColor(DeviceRgb.GREEN)); table.addCell(new Paragraph(person.getGender()).setFontColor(DeviceRgb.BLUE)); } document.add(table); document.close(); } catch (FileNotFoundException e) { e.printStackTrace(); } catch (IOException e) { e.printStackTrace(); } }}

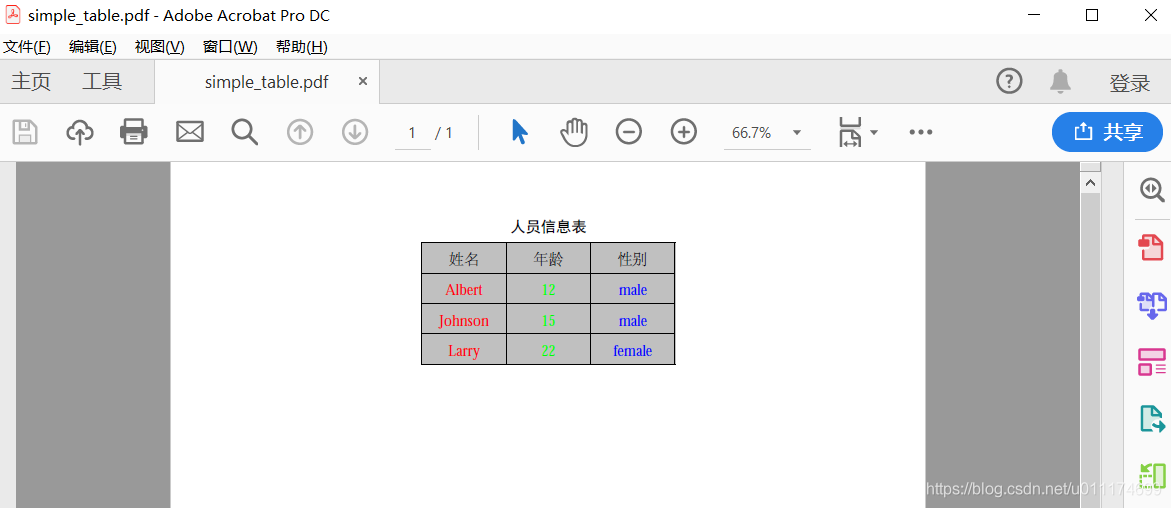

最终创建好的pdf文档:

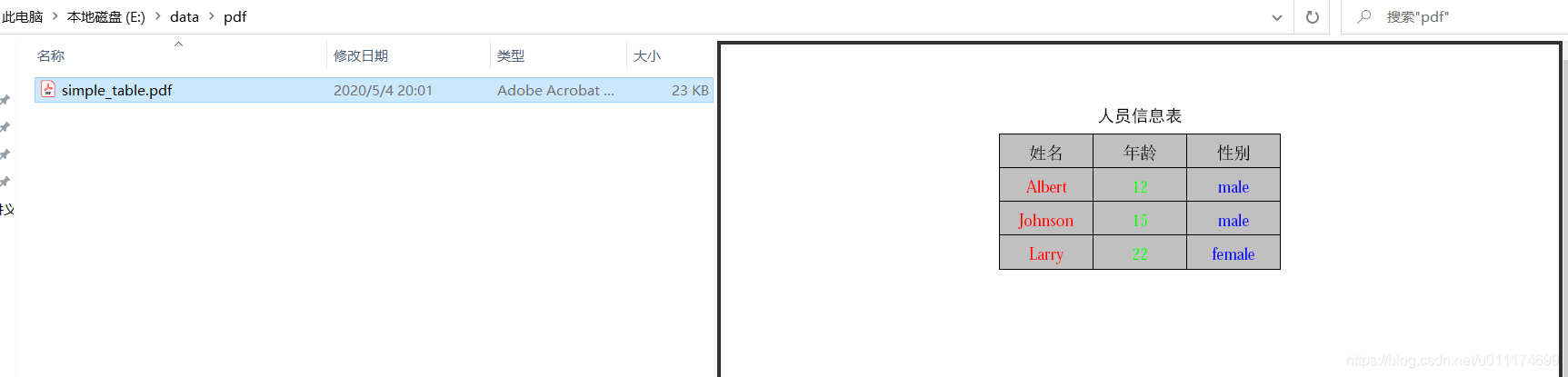

打开文档查看具体效果:
itext官网中还提供了更多关于pdf的操作,具体可以参考官网示例: https://itextpdf.com/en/resources/examples
