有兴趣使用SpringBoot开发JavaFx应用的朋友可以看一下这个随笔；
SpringBoot版本：2.1.15.RELEASE
JavaFx依赖：
; "复制代码")
<dependency>
<groupId>de.roskenet</groupId>
<artifactId>springboot-javafx-support</artifactId>
<version>2.1.6</version>
</dependency>
<dependency>
<groupId>de.roskenet</groupId>
<artifactId>springboot-javafx-test</artifactId>
<version>1.3.0</version>
<scope>test</scope>
</dependency>
; "复制代码")
SpringBoot启动类需要稍加改造：
; "复制代码")
import com.maxinhai.diary.view.IndexFxmlView; import com.maxinhai.diary.view.StartUpPage; import de.felixroske.jfxsupport.AbstractJavaFxApplicationSupport; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; /* * Mood Diary应用启动入口 / @SpringBootApplication public class DiaryApplication extends AbstractJavaFxApplicationSupport { public static void main(String[] args) { // 原SpringBoot启动方法 //SpringApplication.run(DiaryApplication.class, args);
launch(DiaryApplication.class, IndexFxmlView.class, new StartUpPage(), args);
}
}
; "复制代码")
上面是加了启动动画的启动方法

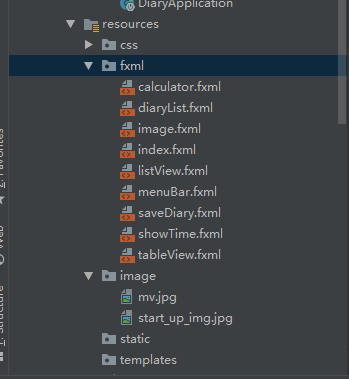

fxml文件存放到resources文件加下即可：
fxml文件：
; "复制代码")
<?xml version="1.0" encoding="UTF-8"?>
<?import javafx.scene.control.Button?>
<?import javafx.scene.control.Label?>
<?import javafx.scene.layout.AnchorPane?>
<?import javafx.scene.text.Font?>
<?import javafx.scene.layout.VBox?>
<?import javafx.scene.layout.HBox?>
<?import javafx.geometry.Insets?>
<AnchorPane prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/8.0.172-ea"; xmlns:fx="http://javafx.com/fxml/1"; stylesheets="@/css/index.css" fx:controller="com.maxinhai.diary.controller.IndexController">
<children>
<fx:include source="menuBar.fxml"/>
<Label fx:id="label" layoutX="20.0" layoutY="20.0" text="hello">
<font>
<Font size="61.0"/>
</font>
</Label>
<VBox layoutX="20.0" layoutY="100.0">
<children>
<HBox>
<children>
<Button fx:id="btn" layoutX="20.0" layoutY="250.0" mnemonicParsing="false" text="Button" onAction="#btnClick" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="btnLogin" layoutX="80.0" layoutY="250.0" mnemonicParsing="false" text="Login" onAction="#btnToPage" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="listView" layoutX="160.0" layoutY="250.0" mnemonicParsing="false" text="toListView" onAction="#btnToListViewPage" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
</children>
</HBox>
<HBox fx:id="hBox1" >
<children>
<Button fx:id="tableView" layoutX="240.0" layoutY="250.0" mnemonicParsing="false" text="toTableView" onAction="#btnToTableViewPage" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="btnToMenuBar" layoutX="320.0" layoutY="250.0" mnemonicParsing="false" text="btnToMenuBar" onAction="#btnToMenuBar" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="btnToDiaryList" layoutX="400.0" layoutY="250.0" mnemonicParsing="false" text="btnToDiaryList" onAction="#btnToDiaryList" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
</children>
</HBox>
<HBox fx:id="hBox2" >
<children>
<Button fx:id="1" layoutX="240.0" layoutY="250.0" mnemonicParsing="false" text="计算器" onAction="#btnToCalculator" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="2" layoutX="320.0" layoutY="250.0" mnemonicParsing="false" text="时钟" onAction="#btnToShowTime" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
<Label prefHeight="22.0" prefWidth="40.0" />
<Button fx:id="3" layoutX="400.0" layoutY="250.0" mnemonicParsing="false" text="btnToDiaryList" onAction="#btnToDiaryList" prefHeight="22.0" prefWidth="100.0">
<HBox.margin>
<Insets top="5.0" />
</HBox.margin>
<padding>
<Insets bottom="5.0" left="5.0" right="5.0" top="5.0" />
</padding>
</Button>
</children>
</HBox>
</children>
</VBox>
</children></AnchorPane>
; "复制代码")
FxmlView 界面试图类创建：
; "复制代码")
import de.felixroske.jfxsupport.AbstractFxmlView; import de.felixroske.jfxsupport.FXMLView;
@FXMLView(value = "/fxml/index.fxml",title = "index",bundle = "i18n.index",encoding = "utf-8") public class IndexFxmlView extends AbstractFxmlView {
}
; "复制代码")
FxmlController 界面操作方法泪创建：
; "复制代码")
import com.maxinhai.diary.DiaryApplication; import com.maxinhai.diary.view.; import de.felixroske.jfxsupport.FXMLController; import javafx.event.ActionEvent; import javafx.fxml.FXML; import javafx.fxml.Initializable; import javafx.scene.control.Button; import javafx.scene.control.Label; import java.net.URL; import java.util.ResourceBundle; / * 首页控制器 / @FXMLController public class IndexController implements Initializable {
@FXML private Button btn;
@FXML private Button btnLogin;
@FXML private Button listView;
@FXML private Label label; private ResourceBundle resourceBundle;
@Override public void initialize(URL location, ResourceBundle resources) {
resourceBundle = resources;
}
@FXML public void btnClick(ActionEvent actionEvent) {
label.setText("helloWorld");
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToPage(ActionEvent actionEvent) {
DiaryApplication.showView(ImageFxmlView.class);
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToListViewPage(ActionEvent actionEvent) {
DiaryApplication.showView(ListViewFxmlView.class);
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToTableViewPage(ActionEvent actionEvent) {
DiaryApplication.showView(TableViewFxmlView.class);
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToMenuBar(ActionEvent actionEvent) {
DiaryApplication.showView(MenuBarFxmlView.class);
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToDiaryList(ActionEvent actionEvent) {
DiaryApplication.showView(DiaryListFxmlView.class);
} /** \* 跳转场景
\* @param actionEvent */ @FXML public void btnToCalculator(ActionEvent actionEvent) {
DiaryApplication.showView(CalculatorFxmlView.class);
}
@FXML public void btnToShowTime(ActionEvent actionEvent) {
DiaryApplication.showView(ShowTimeFxmlView.class);
}
}
; "复制代码")
StartUpPage启动动画类：
; "复制代码")
import com.maxinhai.diary.config.Constant; import de.felixroske.jfxsupport.SplashScreen; import javafx.scene.Parent; import javafx.scene.control.ProgressBar; import javafx.scene.image.ImageView; import javafx.scene.layout.VBox; /* * 应用启动页 /
public class StartUpPage extends SplashScreen {
@Override public Parent getParent() { final ImageView imageView = new ImageView(getClass().getResource(getImagePath()).toExternalForm()); final ProgressBar splashProgressBar = new ProgressBar();
splashProgressBar.setPrefWidth(imageView.getImage().getWidth()); final VBox vbox = new VBox();
vbox.getChildren().addAll(imageView, splashProgressBar); return vbox;
} /** \* 是否显示: true显示
\* @return
*/ @Override public boolean visible() { return true;
} /**\*
\* 启动页图片
\* @return
*/ @Override public String getImagePath() { // 图片路径
return Constant.START\_UP\_IMAGE_URL;
}}
; "复制代码")
application.properties
server.port=10010
毕竟是SpringBoot项目启动端口还是要配置的
要是嫌弃上面fxml、controller里的代码太多，可以删除里面的大多数节点，简单跑起来
