1.问题描述
对于大文件上传解析，若直接上传，会超时，可使用WebSocket长链接方式实时显示文件的上传状态，实际上是从文件上传到内容解析完成存入数据库的过程，各个阶段的进度可自定义。

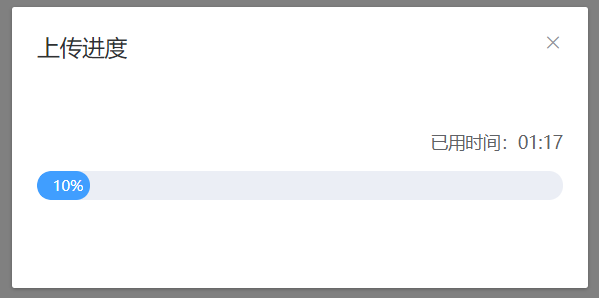

本文使用SpringBoot+WebSocket+vue2.0+Element+nginx实现文件实时上传显示进度条，上传的截图如下：
2.解决方案
1）导入依赖
)
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId></dependency>
2）开启WebSocket的支持，并把该类注入到spring容器中
; "复制代码")
)
package com.zxh.example.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter; //开启WebSocket的支持，并把该类注入到spring容器中
@Configuration public class WebSocketConfig {
@Bean public ServerEndpointExporter serverEndpointExporter() { return new ServerEndpointExporter();
}
}
; "复制代码")
3）编写WebSocket服务
; "复制代码")
)
package com.zxh.example.service;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.stereotype.Component;
import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.concurrent.ConcurrentHashMap; /**
* @author zhengkai.blog.csdn.net */ @ServerEndpoint("/wsServer/{userId}")
@Component
@Slf4j public class WebSocketServer { /**
\* 静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。 */
private static int onlineCount = 0; /*\*
\* concurrent包的线程安全Set，用来存放每个客户端对应的MyWebSocket对象。 */
private static ConcurrentHashMap<String, WebSocketServer> webSocketMap = new ConcurrentHashMap<>(); /*\*
\* 与某个客户端的连接会话，需要通过它来给客户端发送数据 */
private Session session; /*\*
\* 接收userId */
private String userId = ""; /*\*
\* 连接建立成功调用的方法 */ @OnOpen public void onOpen(Session session, @PathParam("userId") String userId) { this.session = session; this.userId = userId; if (webSocketMap.containsKey(userId)) {
webSocketMap.remove(userId);
webSocketMap.put(userId, this); //加入set中
} else {
webSocketMap.put(userId, this); //加入set中addOnlineCount(); //在线数加1
}
log.info("用户连接:" \+ userId + ",当前在线人数为:" + getOnlineCount()); try {
sendMessage("连接成功");
} catch (IOException e) {
log.error("用户:" \+ userId + ",网络异常!!!!!!");
}
} /*\*
\* 连接关闭调用的方法 */ @OnClose public void onClose() { if (webSocketMap.containsKey(userId)) {
webSocketMap.remove(userId); //从set中删除subOnlineCount();
}
log.info("用户退出:" \+ userId + ",当前在线人数为:" + getOnlineCount());
} /*\*
\* 收到客户端消息后调用的方法
\*
\* @param message 客户端发送过来的消息 */ @OnMessage public void onMessage(String message, Session session) {
log.info("用户消息:" \+ userId + ",报文:" + message); //可以群发消息 //消息保存到数据库、redis
if (StringUtils.isNotBlank(message)) { try { //解析发送的报文
JSONObject jsonObject = JSON.parseObject(message); //追加发送人(防止串改)
jsonObject.put("fromUserId", this.userId);
String toUserId = jsonObject.getString("toUserId"); //传送给对应toUserId用户的websocket
if (StringUtils.isNotBlank(toUserId) && webSocketMap.containsKey(toUserId)) {
webSocketMap.get(toUserId).sendMessage(jsonObject.toJSONString());
} else {
log.error("请求的userId:" \+ toUserId + "不在该服务器上"); //否则不在这个服务器上，发送到mysql或者redis}
} catch (Exception e) {
e.printStackTrace();
}
}
} /*\*
\* 出现错误
\*
\* @param session
\* @param error */ @OnError public void onError(Session session, Throwable error) {
log.error("用户错误:" \+ this.userId + ",原因:" + error.getMessage());
error.printStackTrace();
} /*\*
\* 实现服务器主动推送 */
public void sendMessage(String message) throws IOException { this.session.getBasicRemote().sendText(message);
} /*\*
\* 发送自定义消息 */
public static void sendInfo(String message, @PathParam("userId") String userId) throws IOException {
log.info("发送消息到:" \+ userId + "，报文:" + message); if (StringUtils.isNotBlank(userId) && webSocketMap.containsKey(userId)) {
webSocketMap.get(userId).sendMessage(message);
} else {
log.error("用户" \+ userId + ",不在线！");
}
} public static synchronized int getOnlineCount() { return onlineCount;
} public static synchronized void addOnlineCount() {
WebSocketServer.onlineCount++;
} public static synchronized void subOnlineCount() {
WebSocketServer.onlineCount--;
}}
; "复制代码")
4）编写文件上传的controller
; "复制代码")
)
package com.zxh.example.controller;
import com.zxh.example.service.TestService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;
@RestController
@RequestMapping("/api")
@Slf4j public class TestController {
@Autowired private TestService testService;
@PostMapping("/upload") public String upload(MultipartFile file) { return testService.upload(file);
}
}
; "复制代码")
5）编写文件上传的实现类，实时解析文件并发送通知
; "复制代码")
)
package com.zxh.example.service;
import cn.afterturn.easypoi.handler.inter.IReadHandler;
import com.zxh.example.entity.User;
import com.zxh.example.util.ExcelUtils;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
@Service
@Slf4j public class TestService { public String upload(MultipartFile file) {
Integer\[\] percent = {1};
sendMessage(percent\[0\]);
Integer percentMax1 = 20;
Integer percentMax2 = 100; // 读取Excel中的数据到list集合中
List<User> list = new ArrayList<>(); //解析excel，解析1%~20%
ExcelUtils.importExcelBySax(file, User.class, 2, new IReadHandler<User>() {
@Override public void handler(User o) {
list.add(o); //每读取指定行，推送1
if (list.size() % 10000 == 0 && percent\[0\] < percentMax1) {
percent\[0\]++;
sendMessage(percent\[0\]);
}
}
@Override public void doAfterAll() { //解析成功
percent\[0\] = percentMax1;
sendMessage(percent\[0\]);
}
}); //模拟数据插入，每1000条发送一次消息 21%~100%
Integer maxSize = 1000;
Integer queryCnt = list.size() % maxSize == 0 ? list.size() / maxSize : (list.size() / maxSize) + 1;
Integer sendCnt = 10; for (int i = 0; i < queryCnt; i++) {
Integer endIndex = (i + 1) * maxSize; if (endIndex > list.size()) {
endIndex = list.size();
} //集合截取
List<User> tempList = new ArrayList<>(list.subList(i * maxSize, endIndex)); //模拟数据查询
if (queryCnt % sendCnt == 0 && percent\[0\] < percentMax2) {
percent\[0\]++;
sendMessage(percent\[0\]);
}
}
percent\[0\] = percentMax2;
sendMessage(percent\[0\]); return "success";
} /*\*
\* 自定义封装的发送方法
\* @param msg */
private void sendMessage(Integer msg) { try {
WebSocketServer.sendInfo(msg.toString(), "111");
} catch (IOException e) {
log.error("消息发送异常：" + e.getMessage());
e.printStackTrace();
}
}}
; "复制代码")
6）编写全局的global.js，可在全局使用，方便各个页面都能获取到消息
; "复制代码")
)
export default { //websocket
webSocket: {},
setWs: function (ws) { this.webSocket = ws
},
wsUrl: `${location.protocol === 'https:' ? 'wss' : 'ws'}://${location.host}/wsServer/`,}
; "复制代码")
7）在main.js中注入global.js中的方法
)
import global from './global' Vue.prototype.global = global
8）在Vue的App.vue创建webscoketd对象，并注册到全局
; "复制代码")
)
<template>
<div id="app">
<router-view /></div>
</template>
<script> export default {
name: 'App',
data() { return {
socket: null }
},
mounted() { this.initWs()
},
methods: { //初始化initWs() { if (typeof (WebSocket) === "undefined") {
alert("您的浏览器不支持socket")
} else { // 实例化socket 111是固定的用户id,正式环境直接获取当前登录用户id
this.socket = new WebSocket(this.global.wsUrl + '111') this.global.setWs(this.socket) // 监听socket连接
this.socket.onopen = () => {
console.log("socket连接成功")
} // 监听socket错误信息
this.socket.onerror = () => {
console.error("连接错误")
} //监听socket消息
this.socket.onmessage = (msg) => { // console.log(msg)} // 监听socket关闭信息
this.socket.onclose = (e) => {
console.error("socket已经关闭")
console.error(e)
}
}
},
},} </script>
<style> #app {
height: 100%;} </style>
; "复制代码")
9）在vue.config.js配置协议，转发到后台服务（本地开发）
; "复制代码")
)
module.exports = {
devServer: {
host: '0.0.0.0', // //设置端口号
port: 8006, //自动打开浏览器
open: true,
proxy: { '/api': {
target: 'http://localhost:8080',
}, //websocket配置，正式环境设置nginx代理
'/wsServer': {
target: 'http://localhost:8080' },
},},
}
; "复制代码")
10）编写上传文件的页面
; "复制代码")
)
<template>
<div>
<el-button type="primary" icon="el-icon-upload" @click="handleUpload" style="margin-left: 10px;">导入 </el-button>
<el-upload ref="importUpload" :auto-upload="false" :show-file-list="false" :on-change="postFile" style="display: inline" action="#">
<el-button id="uploadButton1" style="display: none" slot="trigger" />
</el-upload>
<el-dialog title="上传进度" :visible.sync="uploadDialog" width="30%" @close="closeDialog" :close-on-click-modal="false">
<p>
<div class="time-content">已用时间：{{timesStr}}</div>
</p>
<el-progress :percentage="percentMsg" :text-inside="true" :stroke-width="23"></el-progress>
<div class="status-content">
<p v-if="importStatus == 1">
<span class="status-content-icon-span">上传中，请稍后......</span>
</p>
<p v-if="importStatus == 2"><i class="el-icon-success"></i>
<span class="status-content-icon-span">上传成功</span>
</p>
<p v-if="importStatus == 3"><i class="el-icon-error"></i>
<span class="status-content-icon-span">上传失败</span>
</p>
</div>
</el-dialog>
</div></template>
<script> import {
user
} from "@/api/user";
let that
export default {
data() { return {
uploadDialog: false,
websocket: "",
percentMsg: 0,
times: 0,
timesStr: '00:00',
timesId: null,
importStatus: 0, //上传状态，0未上传，1上传中，2上传成功，3上传失败}
},
created() {
that = this },
watch: { 'percentMsg': function (val) { if (val === 100 && this.timesId) {
clearInterval(this.timesId)
}
}, 'importStatus': function (val) { if (val === 3 && this.timesId) {
clearInterval(this.timesId)
}
}
},
mounted() { this.getSystemWs()
},
methods: {
getSystemWs() { this.global.webSocket.onmessage = res => { if (res && res.data) { this.percentMsg = Number(res.data)
} else { this.importStatus = 3 }
}
}, //上传开始计时startUpload() { this.timesId = setInterval(function () {
let timesStr = that.timesStr
that.times++ let m = parseInt(that.times / 60)
let s = that.times % 60
if (that.times != 0 && s % 60 == 0) {
m = that.times / 60 s = 0 } if (m < 10) {
timesStr = '0' + m
} else {
timesStr = m
}
timesStr += ":"
if (s < 10) {
timesStr = timesStr + '0' }
timesStr = timesStr + s
that.timesStr = timesStr
}, 1000);
},
handleUpload() { const uploadObj1 = document.getElementById("uploadButton1");
uploadObj1.click();
},
beforeUpload(file) { if (file.type == "" || file.type == null || file.type == undefined) { const FileExt = file.name.replace(/.+\\./, "").toLowerCase(); if (
FileExt == "xls" || FileExt == "xlsx" || FileExt == "XLS" || FileExt == "XLSX" ) { return true;
} else { this.$message.error("上传文件必须是Excel格式!"); return false;
}
} return true;
},
postFile(file) { this.percentMsg = 0
this.startUpload() var fileData = new FormData();
fileData.append("file", file.raw);
let headers = { "Content-Type": "multipart/form-data" }; this.uploadDialog = true;
user.upload(fileData).then(res => { if (res == 'success') { this.importStatus = 2 } else { this.importStatus = 3 }
});
},
closeDialog() { if (this.timesId) {
clearInterval(this.timesId)
} this.percentMsg = 0
this.times = 0
this.timesStr = '00:00'
if (this.importStatus == 2) { this.getList()
} this.importStatus = 0 },
},
} </script>
<style> .time-content {
text-align: right;
width: 100%;
}
.status-content {
margin-top: 40px;
width: 100%;
text-align: center;
}
.status-content .el-icon-success {
font-size: 30px;
vertical-align: -20%;
color: #67C23A;
}
.status-content .el-icon-error {
font-size: 30px;
vertical-align: -20%;
color: #ee3838;
}
.status-content .el-icon-warning {
font-size: 30px;
vertical-align: -20%;
color: #E6A23C;
}
.status-content-icon-span {
margin-left: 10px;
} </style>
; "复制代码")
3.注意事项
3.1nginx代理配置
11）在上线时是需要使用nginx代理的，故需使用nginx代理前端的WebSocket
在nginx.conf做如下配置：
; "复制代码")
)
...
#请求体大小
client_max_body_size 20M;
...
server {
listen 81;
server_name localhost;
location / {
root html;
try_files $uri $uri/ /index.html;
}
location ~^/api/ {
proxy_pass http://127.0.0.1:8080;proxy_read_timeout 600s; #默认是60s，若不配置则超过60s会出现504状态码
}
#websocket代理配置
location ~^/wsServer/ {
proxy_pass http://127.0.0.1:8080;
# 开启nginx对websocket的支持
proxy\_http\_version 1.1;
proxy\_set\_header Upgrade $http_upgrade;
proxy\_set\_header Connection "upgrade";
proxy\_read\_timeout 36000s; #10小时未传输数据则关闭连接
}...
; "复制代码")
默认情况下，如果代理服务器在60秒内未传输任何数据，则连接将关闭。请求体的大小根据实际情况修改。若不配置，则上传文件超过默认值1MB时就会出现413错误状态码。
3.2多节点问题
在单节点服务时，上述即可满足需求，但多节点服务时，通过nginx代理，若连接和请求都在同一台服务器时，可正常使用，但也会出现和A服务器连接了WebSocket，但在导入时请求的是B服务器的情况，此时B服务器并不会发送消息给前端，导致导入时不显示进度。此时就需要使用分布式的通知方式，下面使用redis的发布订阅功能进行消息的通知。
1）导入redis依赖
; "复制代码")
)
<!-- redis -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId></dependency>
; "复制代码")
2）创建redis消息实体，
; "复制代码")
)
package com.zxh.model;
import lombok.Data;
import lombok.experimental.Accessors;
import java.util.List; /**
* redis发布订阅的消息实体 */ @Data
@Accessors(chain = true) public class RedisMessage { //消息类型,1全部广播，2个人信息
private Integer category; //消息
private String message; //要发送的用户组
private List<String> userList;}
; "复制代码")
方便消息的封装。
2）创建业务处理类，监听redis消息发布
主要用于监听消息的发布，收到消息时进行相关业务的处理。
; "复制代码")
)
package com.zxh.common.listener;
import com.alibaba.fastjson.JSON;
import com.zxh.common.util.CollectionUtil;
import com.zxh.model.RedisMessage;
import com.zxh.server.WebSocketServer;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.connection.Message;
import org.springframework.data.redis.connection.MessageListener;
import org.springframework.stereotype.Component;
import java.io.IOException; /**
* redis消息订阅-业务处理 */ @Component
@Slf4j public class RedisMessageListener implements MessageListener { //重写onMessage，处理相关发布订阅的业务
@SneakyThrows
@Override public void onMessage(Message message, byte\[\] bytes) {
String body = new String(message.getBody(), "UTF-8");
RedisMessage redisMessage = JSON.parseObject(body, RedisMessage.class); if (redisMessage != null) {
Integer category = redisMessage.getCategory(); //个人信息
if (category == 2) { //根据用户id消息
if (CollectionUtil.isNotEmpty(redisMessage.getUserList())) {
redisMessage.getUserList().stream().forEach(userId -> { try {
WebSocketServer.sendInfo(redisMessage.getMessage(),userId);
} catch (IOException e) {
e.printStackTrace();
}
});
} else {
log.warn("无用户信息，发送信息失败");
}
} else if (category == 1) {
}
}
}}
; "复制代码")
3）配置redis发布订阅
; "复制代码")
)
package com.zxh.configure;
import com.zxh.common.SystemConst;
import com.zxh.common.listener.RedisMessageListener;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.data.redis.listener.PatternTopic;
import org.springframework.data.redis.listener.RedisMessageListenerContainer;
import org.springframework.data.redis.listener.adapter.MessageListenerAdapter; /**
* redis发布订阅配置 */ @Configuration
@EnableCaching public class RedisPubSubConfig {
Logger logger = LoggerFactory.getLogger(this.getClass()); /*\*
\* 配置 交换机消息，添加多个 messageListener参数，配置不同的交换机
\*
\* @param connectionFactory
\* @param listenerAdapter
\* @return */ @Bean
RedisMessageListenerContainer container(RedisConnectionFactory connectionFactory,
MessageListenerAdapter listenerAdapter) {
RedisMessageListenerContainer container = new RedisMessageListenerContainer();
container.setConnectionFactory(connectionFactory);
container.addMessageListener(listenerAdapter, new PatternTopic("channel:test1")); return container;
} /*\*
\* 消息监听器适配器，绑定消息处理器，利用反射技术调用消息处理器的业务方法
\*
\* @param listener 业务处理类
\* @return */ @Bean
MessageListenerAdapter listenerAdapter(RedisMessageListener listener) {
logger.info("redis消息监听器加载成功--------->>>>>>"); // onMessage 就是方法名，基于反射调用
return new MessageListenerAdapter(listener, "onMessage");
}
@Bean
StringRedisTemplate template(RedisConnectionFactory connectionFactory) { return new StringRedisTemplate(connectionFactory);
}
}
; "复制代码")
4）调用redis的发布功能
修改TestService的sendMessage的方法，把使用WebSocket发送信息改为把消息发布到redis中。
; "复制代码")
)
@Service
@Slf4j public class TestService {
.....
@Autowired private StringRedisTemplate stringRedisTemplate; private void sendMessage(Integer msg) {
List<String> userList = Arrays.asList("1111");//使用redis的发布订阅发送消息
RedisMessage redisMessage = new RedisMessage().setCategory(2);
redisMessage.setMessage(msg.toString()).setUserList(userList);
stringRedisTemplate.convertAndSend("channel:test1", JSON.toJSONString(redisMessage));
}
}
; "复制代码")
redis发布后，监听器监听到有消息时，使用WebSocket进行消息推送。每台服务器都会推送，只有服务连接成功的一台服务器才能通知到前台成功
原网址: 访问
创建于: 2023-07-28 16:23:22
目录: default
标签: 无
未标明原创文章均为采集，版权归作者所有，转载无需和我联系，请注明原出处，南摩阿彌陀佛，知识，不只知道，要得到
最新评论
