apache 操作 word(.docx)

业务场景

多个docx文档合并到一个文档中

遇到的坑

开始做的时候,是在网上找的资料,通过 XWPFDocument.getBdoy().xmlText() Xml字符串,把所有的xml合并在一起,再 CTBody.set(xml).

 /**
     * 合并文档内容
     *
     * @param src    目标文档
     * @param append 要合并的文档
     * @param map 当时想处理页眉页脚,这里存放的是rId  (由于实现不了,可能写的有问题,就不做描述了)
     * @throws Exception
     */
    private static void appendBody(CTBody src, CTBody append,Map<String,String> map) throws Exception {
        XmlOptions optionsOuter = new XmlOptions();
        optionsOuter.setSaveOuter();
        String appendString = append.xmlText(optionsOuter);

        String srcString = src.xmlText();

        String prefix = srcString.substring(0, srcString.indexOf(">") + 1);
        String mainPart = srcString.substring(srcString.indexOf(">") + 1,
                srcString.lastIndexOf("<"));
        String sufix = srcString.substring(srcString.lastIndexOf("<"));


        // <w:sectPr>多了  匹配<w:sectPr的正则,由于只需删除最后一个<w:sectPr>标签,暂时用截取的方法处理
        //appendString = appendString.replaceAll("/<[\\s]*?w:sectPr[^>]*?>[\\s\\S]*?<[\\s]*?\\/[\\s]*?w:sectPr[\\s]*?>{1}/$", "");
        //if(isFz){
        //    appendString = appendString.replaceAll("/<[\\s]*?w:sectPr[^>]*?>[\\s\\S]*?<[\\s]*?\\/[\\s]*?w:sectPr[\\s]*?>{1}/$", "");
        //} else {
        for (String oldRId : map.keySet()) {
            appendString = appendString.replace(oldRId, map.get(oldRId));
        }

            int i = appendString.lastIndexOf("<w:sectPr");
            int i1 = appendString.lastIndexOf("</w:sectPr>") + 11;
            appendString = appendString.substring(0, i) + appendString.substring(i1);
        //}

        String addPart = appendString.substring(appendString.indexOf(">") + 1,
                appendString.lastIndexOf("<"));
        CTBody makeBody = CTBody.Factory.parse(prefix + mainPart + addPart
                + sufix);
        src.set(makeBody);
    }

<w:headerReference w:type=“default” r:id=“rId9”/>
新合并的word中 没有rId9对应的xml文件,导致word打不开.所以当时就想了个办法,匹配<w:sectPr>标签并替换掉.
上面这个方法再不处理哦页眉页脚也是可以合并word文档的.

解决方案

直接上代码

    /**
     * 测试方法
     * 业务代码 MergeModel的type只是为了让我区分类型,在处理的时候更方便
     * @throws IOException
     */
    public static void testMergeWord() throws IOException {
        List<MergeModel> collect = new ArrayList<>();
        collect.add(new MergeModel("",  "L:\\文件1.docx"));
        collect.add(new MergeModel("zc","L:\\文件2.docx"));
        collect.add(new MergeModel("xj","L:\\文件3.docx"));
        collect.add(new MergeModel("lr","L:\\文件4.docx"));
        collect.add(new MergeModel("qy1","L\\文件5.docx"));
        collect.add(new MergeModel("fz","L:\\文件6.docx"));
        collect.add(new MergeModel("fz","L:\\文件7.docx"));
        collect.add(new MergeModel("fz","L:\\文件8.docx"));
        collect.add(new MergeModel("fz","L:\\文件9.docx"));
        collect.add(new MergeModel("fz","L:\\文件10.docx"));
        collect.add(new MergeModel("fz","L:\\文件11.docx"));
        collect.add(new MergeModel("fz","L:\\文件12.docx"));
        collect.add(new MergeModel("fz","L:\\文件13.docx"));
        collect.add(new MergeModel("fz","L:\\文件14.docx"));
        collect.add(new MergeModel("fz","L:\\文件15.docx"));
        collect.add(new MergeModel("fz","L:\\文件16.docx"));
        mergeDoc(collect, "L:\\结果.docx");
    }

    /**
     * 合并docx文件
     *
     * @param srcDocxs 需要合并的目标docx文件
     * @param destDocx 合并后的docx输出文件
     */
    public static void mergeDoc(List<MergeModel> srcDocxs, String destDocx) {
        int fzStartIndex = 0;
        OutputStream dest = null;
        int opcpSize = srcDocxs.size();
        //获取的OPCPackage对象大于0时,执行合并操作
        if (opcpSize > 0) {
            try {
                dest = new FileOutputStream(destDocx);

                MergeModel mergeModel = srcDocxs.get(0);
                XWPFDocument src1Document = new XWPFDocument(mergeModel.getOpcPackage());

                // 空为报告封面,需要换页
                if(StringUtils.isBlank(mergeModel.getType())){
                    dealCover(src1Document);
                }

                boolean firFz = false;
                //OPCPackage大于1的部分执行合并操作
                if (opcpSize > 1) {
                    List<XWPFParagraph> headerParagraphs = new ArrayList<>();
                    List<XWPFParagraph> fzFooterParagraphs = new ArrayList<>();
                    for (int i = 1; i < opcpSize; i++) {
                        MergeModel mergeModel2 = srcDocxs.get(i);
                        XWPFDocument src2Document = new XWPFDocument(mergeModel2.getOpcPackage());

                        clearSectPr(src2Document);
                        if (mergeModel2.isReportModuleWord()) {
                            BigInteger startNum = null;
                            // 设置起始页码
                            if("zc".equals(mergeModel2.getType())){
                                startNum = new BigInteger("1");
                            }
                            copySectPr(src2Document, startNum);
                            //src2Document.createParagraph().createRun().addBreak(BreakType.PAGE);
                        }

                        if(mergeModel2.getType().startsWith("fz")){
                            // 只需要拿一次
                            if(CollectionUtils.isEmpty(headerParagraphs)){
                                List<XWPFHeader> headerList = src2Document.getHeaderList();
                                for (XWPFHeader xwpfHeader : headerList) {
                                    String text = xwpfHeader.getText();
                                    if(StringUtils.isNotBlank(text.trim())){
                                        headerParagraphs = xwpfHeader.getParagraphs();
                                        break;
                                    }
                                }
                            }

                            // 只需要拿一次
                            if(CollectionUtils.isEmpty(fzFooterParagraphs)){
                                List<XWPFFooter> footerList = src2Document.getFooterList();
                                for (XWPFFooter xwpfFooter : footerList) {
                                    String text = xwpfFooter.getText();
                                    if(StringUtils.isNotBlank(text.trim())){
                                        fzFooterParagraphs = xwpfFooter.getParagraphs();
                                        break;
                                    }
                                }
                            }
                        }

                        List<IBodyElement> bodyElements = src2Document.getBodyElements();
                        for (IBodyElement element : bodyElements) {
                            if(element instanceof XWPFParagraph){
                                XWPFParagraph paragraph = (XWPFParagraph) element;
                                XWPFParagraph xwpfParagraph = src1Document.createParagraph();
                                xwpfParagraph.getCTP().set(paragraph.getCTP().copy());

                                if(mergeModel2.getType().startsWith("fz")){
                                    CTP ctp = xwpfParagraph.getCTP();
                                    CTPPr pPr = ctp.getPPr();
                                    if (pPr == null) {
                                        continue;
                                    }
                                    CTSectPr sectPr = pPr.getSectPr();
                                    if (sectPr == null) {
                                        continue;
                                    }

                                    createDefaultHeader(src1Document, sectPr, headerParagraphs);

                                    copyFooter(src1Document, sectPr, fzFooterParagraphs);

                                    if(!firFz){
                                        CTPageNumber ctPageNumber = sectPr.addNewPgNumType();
                                        ctPageNumber.setStart(new BigInteger("1"));
                                    }
                                    firFz = true;
                                }

                            } else if(element instanceof XWPFTable){
                                XWPFTable xwpfTable = (XWPFTable) element;
                                XWPFTable table = src1Document.createTable();
                                table.getCTTbl().set(xwpfTable.getCTTbl().copy());
                            }
                        }
                        if(mergeModel2.isReportModuleWord()){
                            XWPFParagraph paragraph = src1Document.getLastParagraph();
                            CTPPr pPr = paragraph.getCTP().getPPr();
                            if (pPr == null) {
                                pPr = paragraph.getCTP().addNewPPr();
                            }
                            CTSectPr sectPr = pPr.getSectPr();
                            if (sectPr == null) {
                                sectPr = pPr.addNewSectPr();
                            }
                            List<XWPFParagraph> xwpfParagraphList = new ArrayList<>();
                            List<XWPFFooter> footerList = src2Document.getFooterList();
                            for (XWPFFooter xwpfFooter : footerList) {
                                if(StringUtils.isNotBlank(xwpfFooter.getText())){
                                    xwpfParagraphList = xwpfFooter.getParagraphs();
                                    break;
                                }
                            }
                            copyFooter(src1Document, sectPr, xwpfParagraphList);
                        }
                    }
                }
                //将合并的文档写入目标文件中
                src1Document.write(dest);
            } catch (Exception e) {
                log.error(Consts.EMPTY, e);
                e.printStackTrace();
            } finally {
                //关闭流
                IoUtil.close(dest);
            }
        }

    }
    /**
     * 处理封面的页脚页宽等信息
     * @param docx
     */
    public static void dealCover(XWPFDocument docx){
       // 这里是复制原文档的页脚信息,我这只有一个,所以直接这么处理了
        List<XWPFParagraph> footerParagraph = new ArrayList<>();
        List<XWPFFooter> footerList = docx.getFooterList();
        for (XWPFFooter xwpfFooter : footerList) {
            // 找到需要的页脚
            if(StringUtils.isNotBlank(xwpfFooter.getText()) && xwpfFooter.getText().contains("页脚关键信息")){
                footerParagraph = xwpfFooter.getParagraphs();
                break;
            }
        }
        // 换页,业务需求
        docx.createParagraph().createRun().addBreak(BreakType.PAGE);
        List<XWPFParagraph> paragraphs = docx.getParagraphs();
        CTPageMar pgMar = null;
        CTPageSz pgSz = null;
        // 段落 从后往前找,复制宽度和边距等
        for (int p = paragraphs.size() - 1; p >= 0; p--) {
            XWPFParagraph lastParagraph = paragraphs.get(p);
            if(lastParagraph.getCTP().getPPr() == null || lastParagraph.getCTP().getPPr().getSectPr() == null){
                continue;
            }
            CTSectPr sectPr = lastParagraph.getCTP().getPPr().getSectPr();

            pgMar = sectPr.getPgMar();
            pgSz = sectPr.getPgSz();
            break;
        }
        XWPFParagraph lastParagraph = docx.createParagraph();
        CTPPr pPr = lastParagraph.getCTP().getPPr();
        if(pPr == null){
            pPr = lastParagraph.getCTP().addNewPPr();
        }
        //pPr.addNewWidowControl();
        CTSectPr sectPr = pPr.getSectPr();
        if(sectPr == null){
            sectPr = pPr.addNewSectPr();
        }
        if (pgMar != null) {
            sectPr.addNewPgMar().set(pgMar.copy());
        }
        if (pgSz != null) {
            sectPr.addNewPgSz().set(pgSz.copy());
        }

        // 清空首页所有的页眉页脚信息
        // 因为自己要重新设置页脚,所以我直接清空了页眉页脚属性.
        clearSectPr(docx);

        // 设置为起始页
        CTPageNumber ctPageNumber = sectPr.addNewPgNumType();
        ctPageNumber.setStart(new BigInteger("1"));
        // 复制首页的页脚
        copyFooter(docx, sectPr, footerParagraph);
    }
    /**
     * 清空Sectpr的页眉页脚标签属性
     * @param xwpfDocument
     */
    public static void clearSectPr(XWPFDocument xwpfDocument){
        List<XWPFParagraph> paragraphs = xwpfDocument.getParagraphs();
        for (XWPFParagraph paragraph : paragraphs) {
            CTP ctp = paragraph.getCTP();
            CTPPr pPr = ctp.getPPr();
            if (pPr == null) {
                continue;
            }
            CTSectPr sectPr = pPr.getSectPr();
            if (sectPr == null) {
                continue;
            }
            CTPageSz pgSz = sectPr.getPgSz();

            CTSectPr ctSectPr = CTSectPr.Factory.newInstance();

            CTPageSz ctPageSz = ctSectPr.addNewPgSz();
            ctPageSz.set(pgSz.copy());
            //ctSectPr.addNewDocGrid().set(sectPr.getDocGrid().copy());
            ctSectPr.addNewPgMar().set(sectPr.getPgMar().copy());
            //ctSectPr.addNewCols().set(sectPr.getCols().copy());
            //ctSectPr.addNewPgNumType().set(src2SectPr.getPgNumType().copy());
            ctSectPr.setRsidR(sectPr.getRsidR());
            ctSectPr.setRsidRPr(sectPr.getRsidRPr());
            ctSectPr.setRsidSect(sectPr.getRsidSect());
            pPr.setSectPr(ctSectPr);
        }
        CTSectPr sectPr1 = xwpfDocument.getDocument().getBody().getSectPr();
        if (sectPr1 == null) {
            return;
        }
        CTPageSz pgSz = sectPr1.getPgSz();

        CTSectPr ctSectPr = CTSectPr.Factory.newInstance();

        CTPageSz ctPageSz = ctSectPr.addNewPgSz();
        ctPageSz.set(pgSz.copy());
        ctSectPr.addNewDocGrid().set(sectPr1.getDocGrid().copy());
        ctSectPr.addNewPgMar().set(sectPr1.getPgMar().copy());
        ctSectPr.addNewCols().set(sectPr1.getCols().copy());
        //ctSectPr.addNewPgNumType().set(src2SectPr.getPgNumType().copy());
        ctSectPr.setRsidR(sectPr1.getRsidR());
        ctSectPr.setRsidRPr(sectPr1.getRsidRPr());
        ctSectPr.setRsidSect(sectPr1.getRsidSect());
        xwpfDocument.getDocument().getBody().setSectPr(ctSectPr);
    }
    /**
    * 页眉页脚的主要处理
    **/
    public static void copyFooter(XWPFDocument docx, CTSectPr sectPr, List<XWPFParagraph> xwpfParagraphList) {
        XWPFRelation relation = XWPFRelation.FOOTER;
        int relationIndex = getRelationIndex(relation, docx);
        XWPFFooter footer = (XWPFFooter) docx.createRelationship(relation, XWPFFactory.getInstance(), relationIndex);
        for (XWPFParagraph xwpfParagraph : xwpfParagraphList) {
            CTP ctp = footer.createParagraph().getCTP();
            ctp.set(xwpfParagraph.getCTP().copy());
        }
        // 把上面创建的footer的关联id,设到需要的分页节上CTSectPr
        String relationId = docx.getRelationId(footer);
        CTHdrFtrRef ctHdrFtrRef = sectPr.addNewFooterReference();
        ctHdrFtrRef.setId(relationId);
    }
    /**
     * 获取关联 rId的最大值
     * @param relation
     * @param doc
     * @return
     */
    public static int getRelationIndex(XWPFRelation relation,XWPFDocument doc) {
        int i = 1;
        for (POIXMLDocumentPart.RelationPart rp : doc.getRelationParts()) {
            if (rp.getRelationship().getRelationshipType().equals(relation.getRelation())) {
                i++;
            }
        }
        return i;
    }
    /**
     * 把最外层的sectPr标签的属性做了copy,去除了页眉页脚等标签,带有设置开始页码的处理
     * @param xwpfDocument
     */
    public static void copySectPr(XWPFDocument xwpfDocument,BigInteger startNum) {

        if(!xwpfDocument.getDocument().getBody().isSetSectPr()){
            return;
        }
        CTBody body = xwpfDocument.getDocument().getBody();
        CTSectPr src2SectPr = body.getSectPr();

        //src2SectPr.set

        CTPageSz pgSz = src2SectPr.getPgSz();
        XWPFParagraph xwpfParagraph = xwpfDocument.getLastParagraph();

        //CTP ctp = CTP.Factory.newInstance();
        //XWPFParagraph xwpfParagraph = new XWPFParagraph(ctp, xwpfDocument);
        CTPPr pPr = xwpfParagraph.getCTP().getPPr();
        if(pPr == null){
            pPr = xwpfParagraph.getCTP().addNewPPr();
        }
        if(pPr.getSectPr() != null){
            return;
        }
        CTSectPr ctSectPr = pPr.addNewSectPr();
        //ctSectPr.set(src2SectPr.copy());
        //ctSectPr.unsetFootnotePr();

        CTPageSz ctPageSz = ctSectPr.addNewPgSz();
        ctPageSz.set(pgSz.copy());
        ctSectPr.addNewDocGrid().set(src2SectPr.getDocGrid().copy());
        ctSectPr.addNewPgMar().set(src2SectPr.getPgMar().copy());
        ctSectPr.addNewCols().set(src2SectPr.getCols().copy());
        //ctSectPr.addNewPgNumType().set(src2SectPr.getPgNumType().copy());
        ctSectPr.setRsidR(src2SectPr.getRsidR());
        ctSectPr.setRsidRPr(src2SectPr.getRsidRPr());
        ctSectPr.setRsidSect(src2SectPr.getRsidSect());

        if (startNum != null) {
            CTPageNumber ctPageNumber = ctSectPr.addNewPgNumType();
            ctPageNumber.setStart(startNum);
        }

    }
    /**
     * 复制已有页眉
     * @param docx
     * @param ctSectPr
     * @param paragraphList
     */
    public static void createDefaultHeader(XWPFDocument docx, CTSectPr ctSectPr, List<XWPFParagraph> paragraphList) {
        XWPFRelation relation = XWPFRelation.HEADER;
        int relationIndex = getRelationIndex(relation, docx);
        XWPFHeader header = (XWPFHeader) docx.createRelationship(relation, XWPFFactory.getInstance(), relationIndex);
        for (XWPFParagraph xwpfParagraph : paragraphList) {
            XWPFParagraph paragraph = header.createParagraph();
            paragraph.getCTP().set(xwpfParagraph.getCTP().copy());
        }

        String relationId = docx.getRelationId(header);
        CTHdrFtrRef ctHdrFtrRef = ctSectPr.addNewHeaderReference();
        ctHdrFtrRef.setId(relationId);
    }
    • *

总结

个人感觉上面代码主要是copyFooter和createDefaultHeader方法解决了我页眉页脚的问题,其他只是基于我业务做出的关联改动.

页眉页脚

    <w:pPr>
             <w:pStyle w:val="1"/>
             <w:rPr>
                 <w:rFonts w:eastAsiaTheme="minorEastAsia"/>
             </w:rPr>
             <w:sectPr w:rsidR="00AC18FB">
                 <w:headerReference w:type="default" r:id="rId9"/>
                 <w:footerReference w:type="default" r:id="rId10"/>
                 <w:pgSz w:w="12240" w:h="15840"/>
                 <w:pgMar w:top="1440" w:right="1800" w:bottom="1440" w:left="1800" w:header="720" w:footer="720" w:gutter="0"/>
                 <w:cols w:space="720"/>
             </w:sectPr>
         </w:pPr>

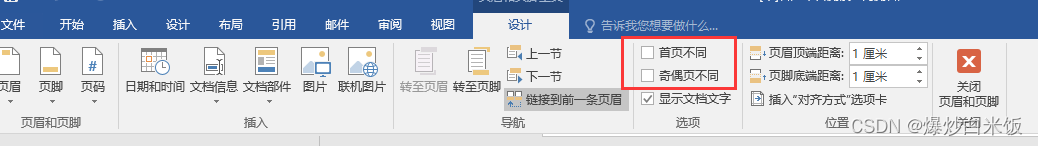

w:headerReference和w:footerReference控制页眉页脚,后面的type就是下图的信息
在这里插入图片描述

里面的rId,在 .\word_rels\document.xml.rels映射到 .\word_rels的各种xml中.例如:footer1.xml,header1.xml
注: 上面的路径是word.docx,把docx后缀修改成.zip,然后解压得到的文件
上面操作的原理就是创建页眉页脚的关联xml,然后拿到关联id设置给w:headerReference标签的 r:id属性.

合并word

开始采用获取body的xml进行合并,但是合并xml后,src1Document的getParagraphs方法获取到的还是合并前的段落,导致我后需找不到插入分页符的节点,最终选择了一个个IBodyElement 进行copy合并。如果只是简单的内容合并,拼接xml的方法完全可以实现。


原网址: 访问
创建于: 2023-06-02 13:01:56
目录: default
标签: 无

请先后发表评论
  • 最新评论
  • 总共0条评论
