环境
centos 7.1
docker 17.05-ce
core：3.10
重现步骤
1.新建宿主机

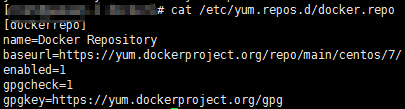

2.修改repo镜像地址
3.安装docker
yum install docker-engine -y
systemctl start docker（启动docker）
systemctl enable docker（设置docker自启动）
docker -v
Docker version 17.05.0-ce, build 89658be
4.安装docker-compose
5.建立docker swarm集群
6.写docker-compose文件

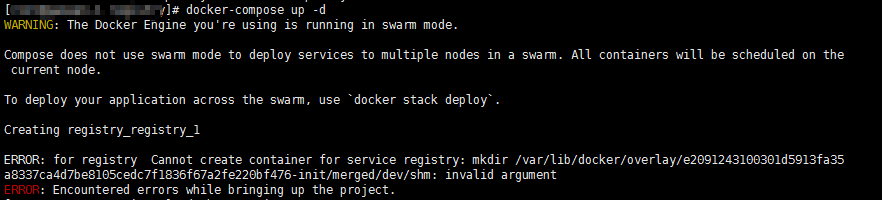

7.执行docker-compose命令报错
分析
怀疑一：docker-compose问题
验证：将命令解析成docker run原始命令依然报错，未解决
怀疑二：docker swarm问题
验证：将节点leave swarm集群环境，用docker run执行，依然报错，未解决
怀疑三：docker volume参数问题
验证：将volume参数去掉，只留最基本的启动参数，依然报错，未解决
怀疑四：镜像问题
验证1：原来使用的是docker.wencst.com私有仓库中的镜像，换成官方镜像，依然报错，未解决
验证2：将同样的docker.wencst.com私有仓库中的镜像在另外的环境中（docker1.12）执行，没有报错，所以镜像没问题
怀疑五：docker版本问题
验证：卸载docker，重新安装docker1.12.4版本，执行docker run命令依然报错，未解决
解决
在qq群里问了一下，大家基本都没有见过这个错误，给出的解决方案也基本为猜测，但在问答的过程中，给了我很多提示，以及排查问题的思路。

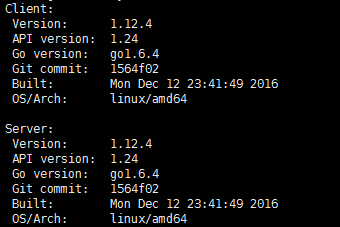

docker version命令
实际上一个命令并没有发现问题，只会看到docker的服务端和客户端版本，但引申出另一个命令（docker info）

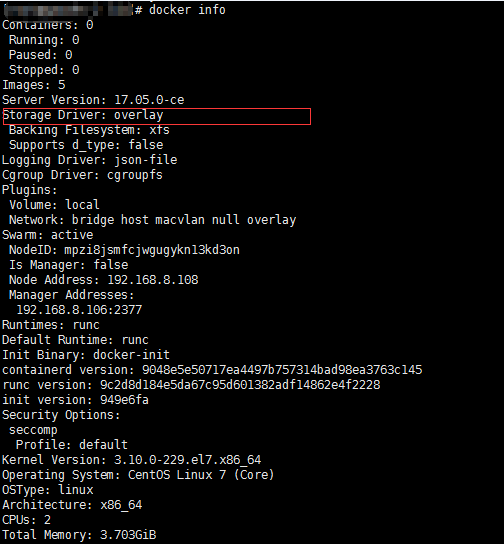

我注意到了画红框的这里，忽然想起以前学习过程中，说到了docker存储的几种方式：devicemapper、overlay、overlay2、aufs等，据说在docker中存储方式是难点，容易出坑的地方。
于是验证了一下两台宿主机的Storage Driver内容，发现确实不一样，于是做了如下操作：
1.systemctl stop docker
2.将另外宿主机（centos7）中的docker配置文件全部移植到新的宿主机（出问题的宿主机）上，文件包括：
/usr/lib/systemd/system/docker.service
/etc/sysconfig/docker
/etc/sysconfig/docker-network
/etc/sysconfig/docker-storage
/etc/sysconfig/docker-storage-setup
3.删除/var/lib/docker文件夹下的文件内容全部删除（注意一定要执行删除，否则无法修改参数）
4.systemctl start docker

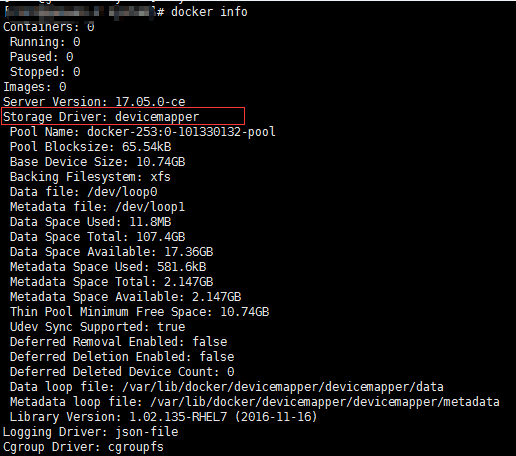

5.docker info
6.执行docker run -d registry:2.1.1，成功完成
其他解决方法
以上解决方法是针对docker1.12版本的，因为以前在安装docker 1.12版本时，默认是用的devicemapper的存储引擎，所以迁移过来后直接就可以用了。
但对于docker 17.05-ce，我怀疑在安装这个docker版本时，默认使用的是overlay的存储引擎，所以才会出现上面的问题。
[
](https://www.googleadservices.com/pagead/aclk?sa=L&ai=CXCgh91eEY-vSHM2B8wOO9rboCab6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0K3Xf79rcIEjABi2774xATvOl_aiBD_0fHy1V08_HMKjwrCInHDH-AgRkOMgK2p6rSbVhAWSAQrs_oG5Vn0e_hvUGDnLAR5F528_N8UdoK4T0FppEHnhj9zIQoSnk9Uhy28PAWMgQxmS57HhTBGMW2OjCZ_u4woA-xzebKbRMF2zN7iY4cZPkIAllU0Hnp3k_ijE2QHfJgWLpU-dSBa1Qa7P1-1cd3HoV25gsQTQYn5z_d_70gjjhO-nOhXRmI98yqtqVO6UJHmu3giGFrn6Te-ByFXuBKZwRB8NVwi1mxDFAHPSYt9gk_KdEdSeyRLG8grZaIWuwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9f6jgN6sGCXslOFXfqFYNR5-rFjsVt4tXnruvi-Mlqx5uZRteJp5j8r0cy80Fj5kWfrSpR85oGAEgEw&sig=AOD64_1sH1ZLqE7rFk_n-1DGvPSl_100yA&client=ca-pub-4509115540848714&nb=9&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMIq6qPuqLQ-wIVzcB8Ch0Ouw2dEAEYASAAEgLLh_D_BwE)
[](https://www.googleadservices.com/pagead/aclk?sa=L&ai=CXCgh91eEY-vSHM2B8wOO9rboCab6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0K3Xf79rcIEjABi2774xATvOl_aiBD_0fHy1V08_HMKjwrCInHDH-AgRkOMgK2p6rSbVhAWSAQrs_oG5Vn0e_hvUGDnLAR5F528_N8UdoK4T0FppEHnhj9zIQoSnk9Uhy28PAWMgQxmS57HhTBGMW2OjCZ_u4woA-xzebKbRMF2zN7iY4cZPkIAllU0Hnp3k_ijE2QHfJgWLpU-dSBa1Qa7P1-1cd3HoV25gsQTQYn5z_d_70gjjhO-nOhXRmI98yqtqVO6UJHmu3giGFrn6Te-ByFXuBKZwRB8NVwi1mxDFAHPSYt9gk_KdEdSeyRLG8grZaIWuwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9f6jgN6sGCXslOFXfqFYNR5-rFjsVt4tXnruvi-Mlqx5uZRteJp5j8r0cy80Fj5kWfrSpR85oGAEgEw&sig=AOD64_1sH1ZLqE7rFk_n-1DGvPSl_100yA&client=ca-pub-4509115540848714&nb=8&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMIq6qPuqLQ-wIVzcB8Ch0Ouw2dEAEYASAAEgLLh_D_BwE)
[
](https://www.googleadservices.com/pagead/aclk?sa=L&ai=CXCgh91eEY-vSHM2B8wOO9rboCab6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0K3Xf79rcIEjABi2774xATvOl_aiBD_0fHy1V08_HMKjwrCInHDH-AgRkOMgK2p6rSbVhAWSAQrs_oG5Vn0e_hvUGDnLAR5F528_N8UdoK4T0FppEHnhj9zIQoSnk9Uhy28PAWMgQxmS57HhTBGMW2OjCZ_u4woA-xzebKbRMF2zN7iY4cZPkIAllU0Hnp3k_ijE2QHfJgWLpU-dSBa1Qa7P1-1cd3HoV25gsQTQYn5z_d_70gjjhO-nOhXRmI98yqtqVO6UJHmu3giGFrn6Te-ByFXuBKZwRB8NVwi1mxDFAHPSYt9gk_KdEdSeyRLG8grZaIWuwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9f6jgN6sGCXslOFXfqFYNR5-rFjsVt4tXnruvi-Mlqx5uZRteJp5j8r0cy80Fj5kWfrSpR85oGAEgEw&sig=AOD64_1sH1ZLqE7rFk_n-1DGvPSl_100yA&client=ca-pub-4509115540848714&nb=8&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMIq6qPuqLQ-wIVzcB8Ch0Ouw2dEAEYASAAEgLLh_D_BwE)

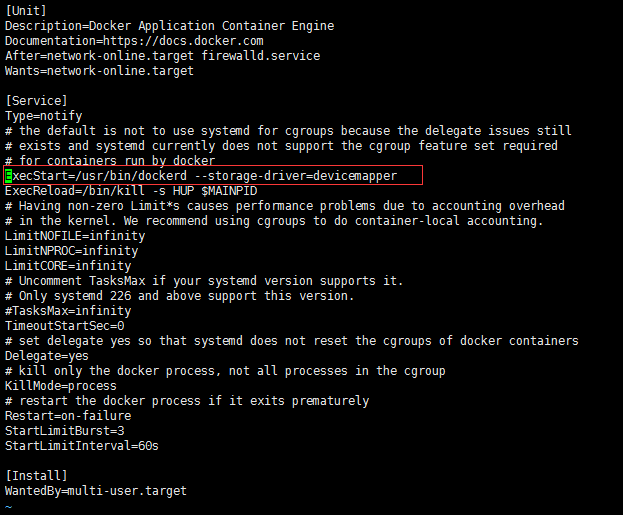

方案一：可以在/usr/lib/systemd/system/docker.service中增加如下参数
方案二：可以在/etc/docker/文件夹下修改daemon.json文件（如果没有则新增，docker会默认读取这个文件的）
上述两个方案，都是需要重启docker服务的。注意在生产环境中尽量不要使用overlay的存储引擎，如果能用Ubuntu操作系统作为docker宿主机最好，如果必须使用centos系统，则替换为devicemapper存储引擎。
原因
这类问题一般是 CentOS/RHEL 红帽系的问题，CentOS 这类红帽系统中，由于不像 Ubuntu 那样有成熟的 Union FS实现(如aufs)，所以只能使用 devicemapper，而默认使用的是lvm-loop，也就是用一个稀疏文件来当成一个块设备，给devicemapper用，作为Docker镜像容器文件系统。这是非常不推荐使用的，性能很差不说，不稳定，还有很多 bug，如果没办法换 Ubuntu/Debian 系统，那么最起码应该建立块设备（分区、卷）给 devicemapper 用。
[
](https://www.googleadservices.com/pagead/aclk?sa=L&ai=C_i2sA1iEY_XiFs-X8wO0z6joB6b6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0FIKT6Jrlkc3WM_6IjMvWO1nm8tLFZE2XfAdc4s35zlkES5FEU54eun2XXSCFedIIECaOfqPv_R8Ih-eP0M3B5ScYHfVzuElkFMTVKi-LZp4KJkUwFXj6k0RwDFHSLTbKsRaqB87PfzECbduONrZ4I29No05SxIi124DDVyaaYIJByOhNwCSFc94ZqEdVeEZft0t8199NRpuAZvv9r_VKagf3X5hxjsRVqLfDX98LYI_5k61EBdQwVeQpKaibiiK2vPo7JM9SFsICrf-owMXwnSEOXsW4vgWa328IhgQxTvfRVzH3RcBSgyxn16B8l0OOlMfu7lfwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9V3nsau39VYNGijE1c01xIkPolMvsRlgY27k2O41kz2FVBjN1zskWm3zA4f73OVJoRJpfWEuoGAEgEw&sig=AOD64_26CJQp4lRbffAU8nsXGn4ooYrlIg&client=ca-pub-4509115540848714&nb=9&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMItfDlv6LQ-wIVz8t8Ch20Jwp9EAEYASAAEgKvNPD_BwE)
[](https://www.googleadservices.com/pagead/aclk?sa=L&ai=C_i2sA1iEY_XiFs-X8wO0z6joB6b6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0FIKT6Jrlkc3WM_6IjMvWO1nm8tLFZE2XfAdc4s35zlkES5FEU54eun2XXSCFedIIECaOfqPv_R8Ih-eP0M3B5ScYHfVzuElkFMTVKi-LZp4KJkUwFXj6k0RwDFHSLTbKsRaqB87PfzECbduONrZ4I29No05SxIi124DDVyaaYIJByOhNwCSFc94ZqEdVeEZft0t8199NRpuAZvv9r_VKagf3X5hxjsRVqLfDX98LYI_5k61EBdQwVeQpKaibiiK2vPo7JM9SFsICrf-owMXwnSEOXsW4vgWa328IhgQxTvfRVzH3RcBSgyxn16B8l0OOlMfu7lfwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9V3nsau39VYNGijE1c01xIkPolMvsRlgY27k2O41kz2FVBjN1zskWm3zA4f73OVJoRJpfWEuoGAEgEw&sig=AOD64_26CJQp4lRbffAU8nsXGn4ooYrlIg&client=ca-pub-4509115540848714&nb=8&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMItfDlv6LQ-wIVz8t8Ch20Jwp9EAEYASAAEgKvNPD_BwE)
[
](https://www.googleadservices.com/pagead/aclk?sa=L&ai=C_i2sA1iEY_XiFs-X8wO0z6joB6b6uKFto5Xb8-QPwI23ARABIO-b4m5gnQGgAbDKx-kDyAEJqAMByAPLBKoE9wFP0FIKT6Jrlkc3WM_6IjMvWO1nm8tLFZE2XfAdc4s35zlkES5FEU54eun2XXSCFedIIECaOfqPv_R8Ih-eP0M3B5ScYHfVzuElkFMTVKi-LZp4KJkUwFXj6k0RwDFHSLTbKsRaqB87PfzECbduONrZ4I29No05SxIi124DDVyaaYIJByOhNwCSFc94ZqEdVeEZft0t8199NRpuAZvv9r_VKagf3X5hxjsRVqLfDX98LYI_5k61EBdQwVeQpKaibiiK2vPo7JM9SFsICrf-owMXwnSEOXsW4vgWa328IhgQxTvfRVzH3RcBSgyxn16B8l0OOlMfu7lfwASBmdfn9AOgBi6AB7i1uBaoB47OG6gHk9gbqAfulrECqAf-nrECqAeko7ECqAfVyRuoB6a-G6gHmgaoB_PRG6gHltgbqAeqm7ECqAf_nrECqAffn7EC2AcA0ggPCIBhEAEYHzICigI6AoBAsQmdSb3nNgZ0w4AKAZgLAcgLAYAMAbgMAdgTDtAVAfgWAYAXAQ&ae=1&num=1&cid=CAQSOwDq26N9V3nsau39VYNGijE1c01xIkPolMvsRlgY27k2O41kz2FVBjN1zskWm3zA4f73OVJoRJpfWEuoGAEgEw&sig=AOD64_26CJQp4lRbffAU8nsXGn4ooYrlIg&client=ca-pub-4509115540848714&nb=8&adurl=https://www.spglobal.com/marketintelligence/en/campaigns/sp-capital-iq-pro%3Futm_source%3Dgoogle%26utm_medium%3Ddisplay%26utm_campaign%3DCIQPro_Display_Pro_ENG_Desktop_Lower_Funnel_Google%26utm_term%3D%26utm_content%3D590059110886%26_bt%3D590059110886%26_bk%3D%26_bm%3D%26_bn%3Dd%26_bg%3D134435163265%26gclid%3DEAIaIQobChMItfDlv6LQ-wIVz8t8Ch20Jwp9EAEYASAAEgKvNPD_BwE)
严格来说 CentOS/RHEL 7 中实际上有一个 Union FS 实现，虽然 CentOS/RHEL 7 的内核是 3.10，不过红帽从 Linux 3.18 backport 回来了 overlay fs 的驱动。但是，红帽自己都在官方的发布声明中说能不要用就不用。
https://access.redhat.com/documentation/en-US/Red_Hat_Enterprise_Linux/7/html/7.2_Release_Notes/technology-preview-file_systems.html
