一、项目介绍
lz_rec_push_kafka_consume 该项目通过kafka与算法进行交互,通过push推荐平台(lz_rec_push_platform)预生成消息体。
二、问题背景
发现项目的k8s容器会出现重启现象,重启时间刚好是push扩量,每小时push数据量扩大5倍左右。 发生问题时,容器配置:CPU:4个,内存:堆内3G,堆外1G。
**
三、问题排查流程:望-闻-问-切**

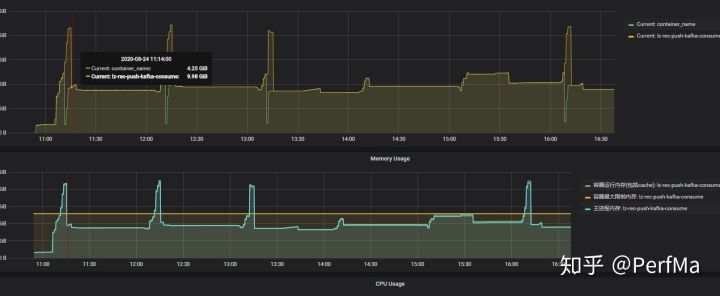

望:查看监控系统,观察重启发生时,容器实例的资源情况

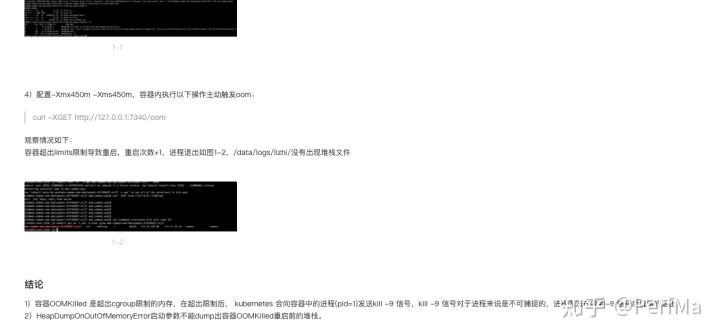

注:容器重启机制:k8s监控发现“实例”内存使用超过申请时,会对容器进行重启。该动作是直接使用kill -9的,而非通过jvm指令对虚拟机进行重启,所以此处别想dump堆。

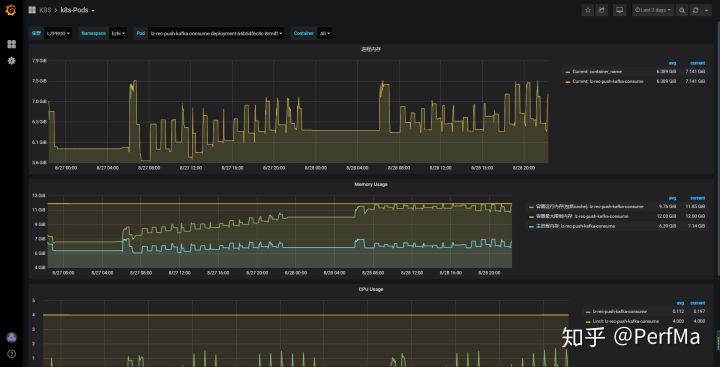

一开始怀疑是内存,但是内存不足的话,应该是出现oom的情况。所以先排除堆内内存不足的问题。将实例内存扩大至:6G,堆内5G,堆外1G。发现重启现象没有丝毫改善。

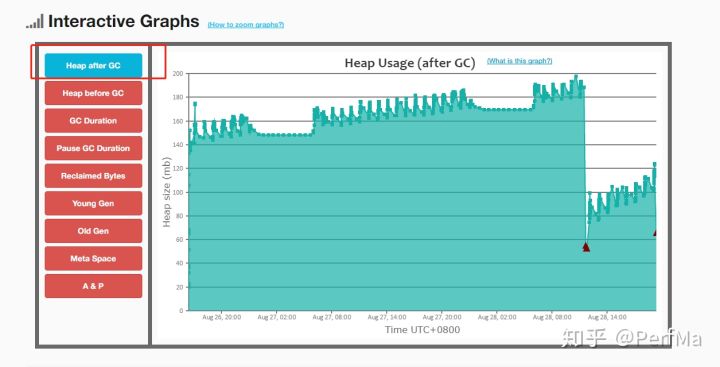

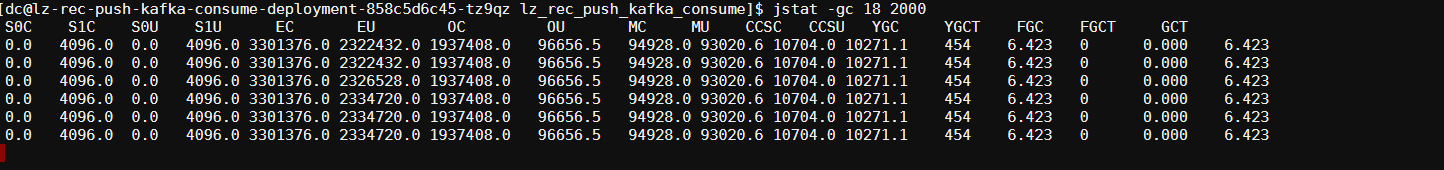

闻:检查项目的健康情况:线程、堆内内存使用、堆外内存使用。
问:目前需要解决的问题是找出堆外内存泄漏的原因。

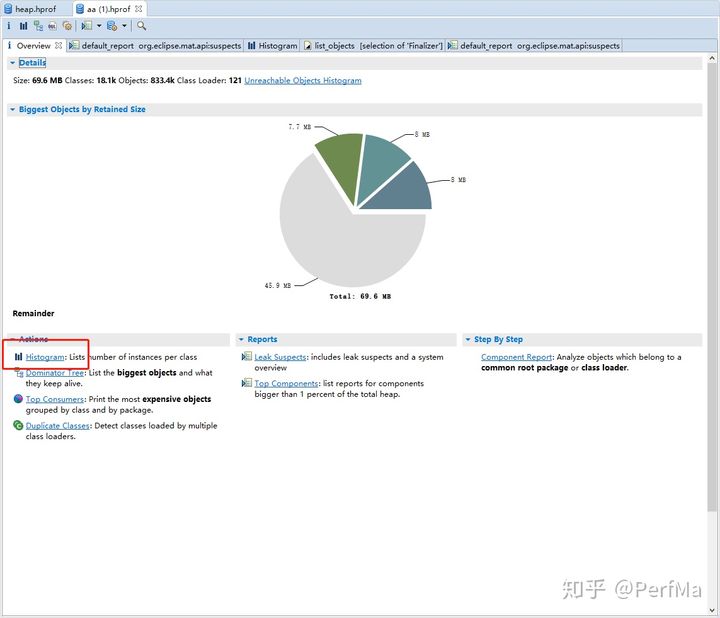

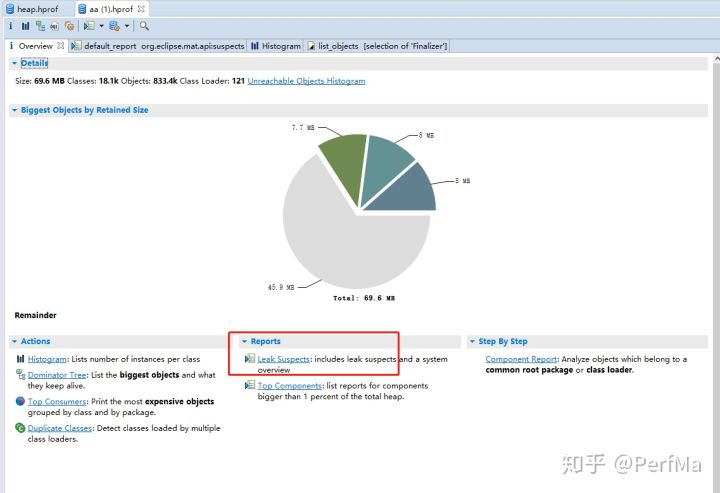

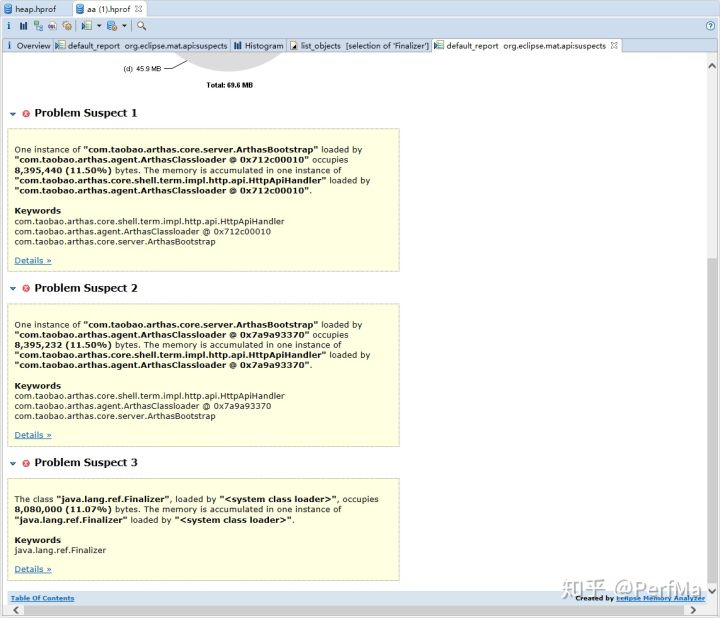

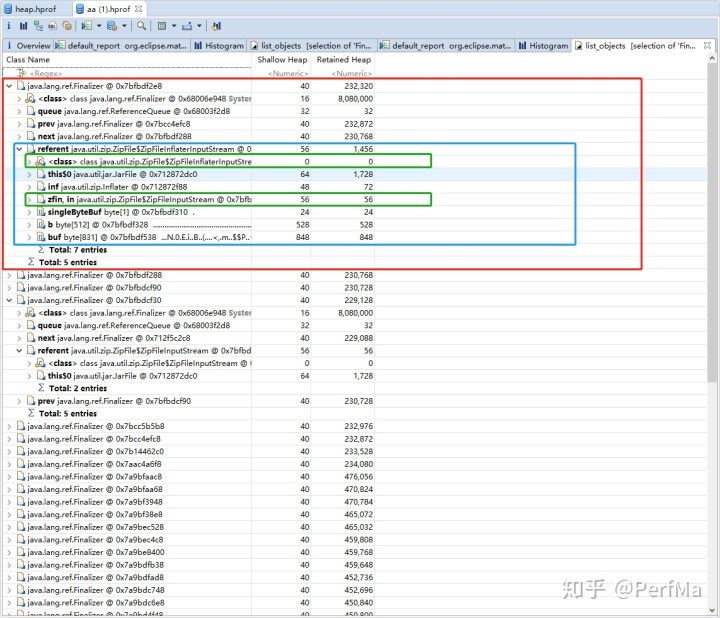

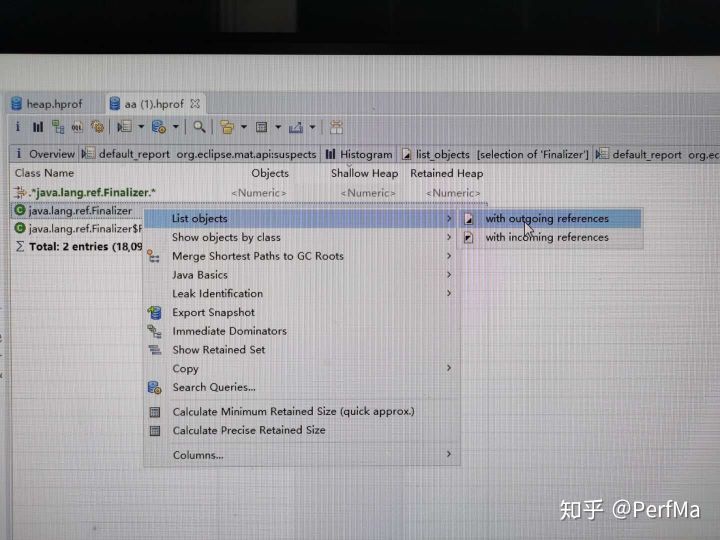

切:通过对分析工具对堆文件进行分析:JProfiler(后面会用到)、MemoryAnalyzer
byte[] input = log.getBytes(); try (final ByteArrayOutputStream outputStream = new ByteArrayOutputStream(input.length)) { final Deflater compressor = new Deflater(); compressor.setInput(input); compressor.finish(); byte[] buffer = new byte[1024]; int offset = 0; for (int length = compressor.deflate(buffer, offset, buffer.length); length > 0; length = compressor.deflate(buffer, offset, buffer.length)) { outputStream.write(buffer, 0, length); outputStream.flush(); } //compressor.end(); return Base64Utils.encodeToString(outputStream.toByteArray()); } } public static String zipDecompress(final String str) throws Exception { byte[] input = Base64Utils.decodeFromString(str); try (final ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream(input.length)) { final Inflater decompressor = new Inflater(); decompressor.setInput(input); byte[] buffer = new byte[1024]; for (int length = decompressor.inflate(buffer); length > 0 || !decompressor.finished(); length = decompressor.inflate(buffer)) { byteArrayOutputStream.write(buffer, 0, length); } //decompressor.end(); return new String(byteArrayOutputStream.toByteArray()); }
/** * Closes the compressor and discards any unprocessed input. * This method should be called when the compressor is no longer * being used, but will also be called automatically by the * finalize() method. Once this method is called, the behavior * of the Deflater object is undefined. *
/** * Closes the compressor and discards any unprocessed input. * This method should be called when the compressor is no longer * being used, but will also be called automatically by the * finalize() method. Once this method is called, the behavior * of the Deflater object is undefined. */ public void end() { synchronized (zsRef) { long addr = zsRef.address(); zsRef.clear(); if (addr != 0) { end(addr); buf = null; } } } /** * Closes the compressor when garbage is collected. */ protected void finalize() { end(); }
思考:项目发生重启是在kafka数据扩量后才出现的,那为何扩量前没有这个问题的出现呢?其实问题一直是存在的,只是数据量小的情况下,引用都在垃圾回收后能正常释放堆外内存。但是扩量后,瞬间的流量增高,产生大量的堆外内存使用引用。在下一次垃圾回收之前ReferenceQueue队列已经堆积了大量的引用,将容器内的堆外内存撑爆。
药:去除压缩解压缩动作

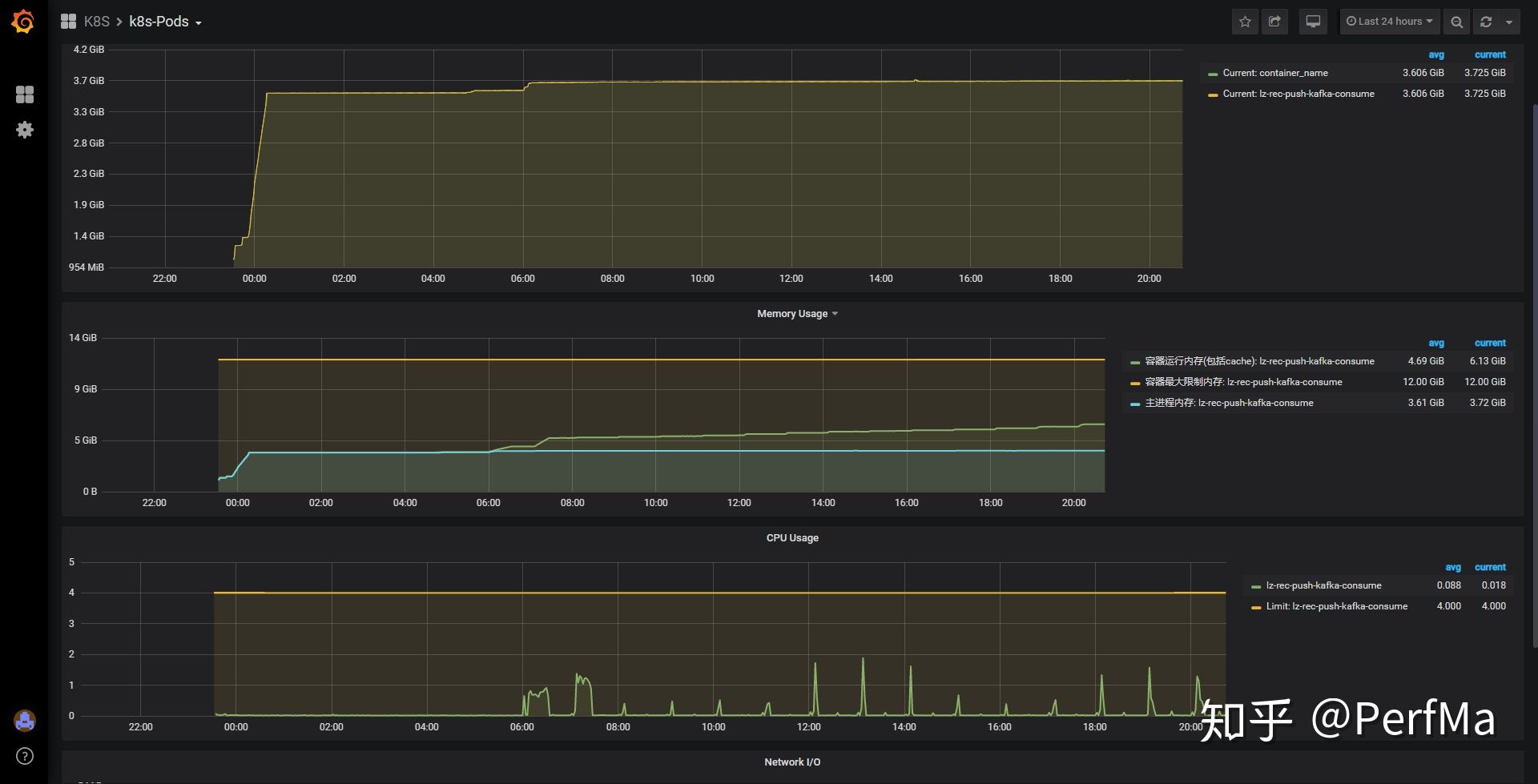

去除压缩与解压缩动作后,发版观察。项目的k8s实例资源监控处在合理范围。
至此,堆外内存问题已经解决了。
五、思考与复盘
问题:使用资源时,保持着资源使用后及时释放的习惯。该问题便是由压缩使用有误引起的,应该也算是低级错误了。
由于第一次排查堆外内存泄漏的问题,没有丰富的经验去锁定问题点达到快速排查,走了不着弯路。该文章略显啰嗦,但是主要目的还是想记录下排查问题的过程。第一次发博客,写作思路上有点紊乱,请多多包涵。如果有什么措辞不当的,还望指出。有什么好的建议也希望能指点一二。
