SpringBoot整合knife4j

1.概述
2.实战演练
- 2.1环境准备
- 2.2接入knife4j
- *

1.概述

Swagger是一款测试文档Api接口，具体用法见SpringBoot整合Swagger。而knife4j是对Swagger进一步封装，其优化了api文档的界面。官网https://doc.xiaominfo.com/knife4j/documentation/。

回到顶部

2.实战演练

2.1环境准备

新建一个SpringBoot的项目，导入需要的依赖

; "复制代码")

)

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>

; "复制代码")

2.2接入knife4j

1）导入依赖

; "复制代码")

)

<groupId>com.github.xiaoymin</groupId>
<artifactId>knife4j-spring-boot-starter</artifactId>
<version>3.0.3</version>

</dependency>

; "复制代码")

2）创建配置类

; "复制代码")

)

package com.example.demo.config;

import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
@EnableKnife4j public class Knife4jConfig {

@Bean public Docket createRestApi() { return new Docket(DocumentationType.SWAGGER_2)
            .useDefaultResponseMessages(false)
            .apiInfo(apiInfo())
            .select()
            .apis(RequestHandlerSelectors.basePackage("com.example.demo.controller"))
            .paths(PathSelectors.any())
            .build();

} private ApiInfo apiInfo() { return new ApiInfoBuilder()
            .description("微微一笑接口测试文档")
            .contact(new Contact("哈哈哈", "https://github.com.lenve", "1916008067@qq.com"))
            .version("v1.1.0")
            .title("API测试文档")
            .build();
}

}

; "复制代码")

3）创建User实体类

; "复制代码")

)

package com.example.demo;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

@Data
@ApiModel(value = "用户实体") public class User {

@ApiModelProperty(value = "id") private Integer id;

@ApiModelProperty(value = "用户名") private String username;

@ApiModelProperty(value = "性别，0男，1女") private Integer sex;

}

; "复制代码")

4）创建开发接口

; "复制代码")

)

package com.example.demo.controller;

import com.example.demo.User;
import io.swagger.annotations.*;
import org.springframework.web.bind.annotation.*;
import springfox.documentation.annotations.ApiIgnore;

@RestController
@Api(tags = "用户接口")//描述UserController的信息
public class UserController {

@ApiOperation(value = "查询用户",notes = "根据id查询用户")
@ApiImplicitParam(paramType = "path",name="id",value = "用户id",required = true)
@GetMapping("/user/query/{id}") public String getUserById(@PathVariable Integer id) { return "/user/"+id;
}

@ApiResponses({
        @ApiResponse(code=200,message="删除成功"),
        @ApiResponse(code=500,message="删除失败")})
@ApiOperation(value = "删除用户",notes = "根据id删除用户")
@DeleteMapping("/user/delete/{id}") public Integer deleteUserById(@PathVariable Integer id) { return id;
}

@ApiOperation(value = "添加用户",notes = "添加一个用户，传入用户名和性别")
@ApiImplicitParams({
        @ApiImplicitParam(paramType = "query",name="username",value = "用户名",required = true,defaultValue = "张三"),
        @ApiImplicitParam(paramType = "query",name="sex",value = "性别",required = true,defaultValue = "女")
})
@PostMapping("/user") public String addUser(@RequestParam String username,@RequestParam String sex){ return username+","+sex;
}

@ApiOperation(value="修改用户",notes = "根据传入的用户信息修改用户")
@PutMapping("/user") public String updateUser(@RequestBody User user){ return user.toString();
}

@GetMapping("/ignore")
@ApiIgnore public void ignoreMethod(){}

}

; "复制代码")

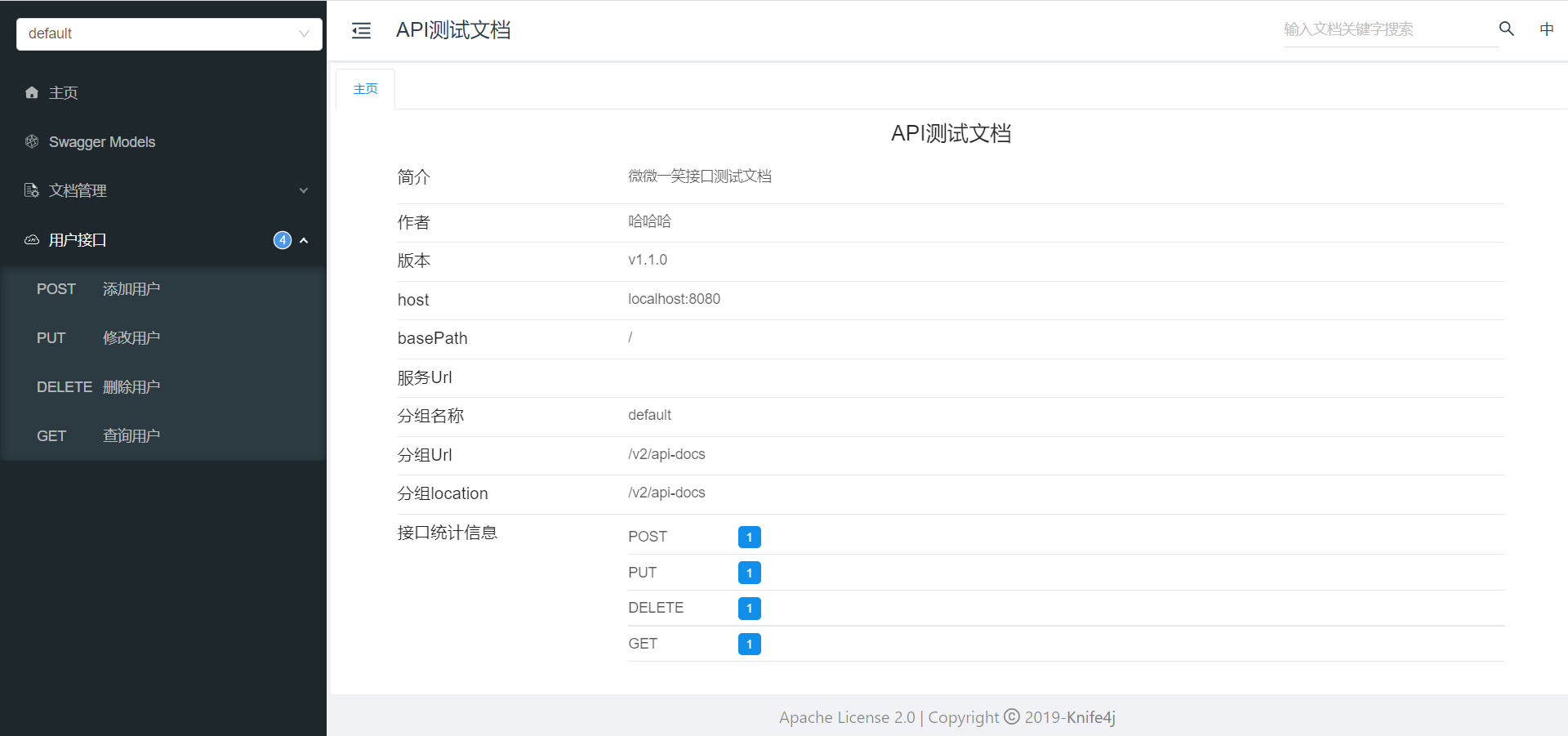

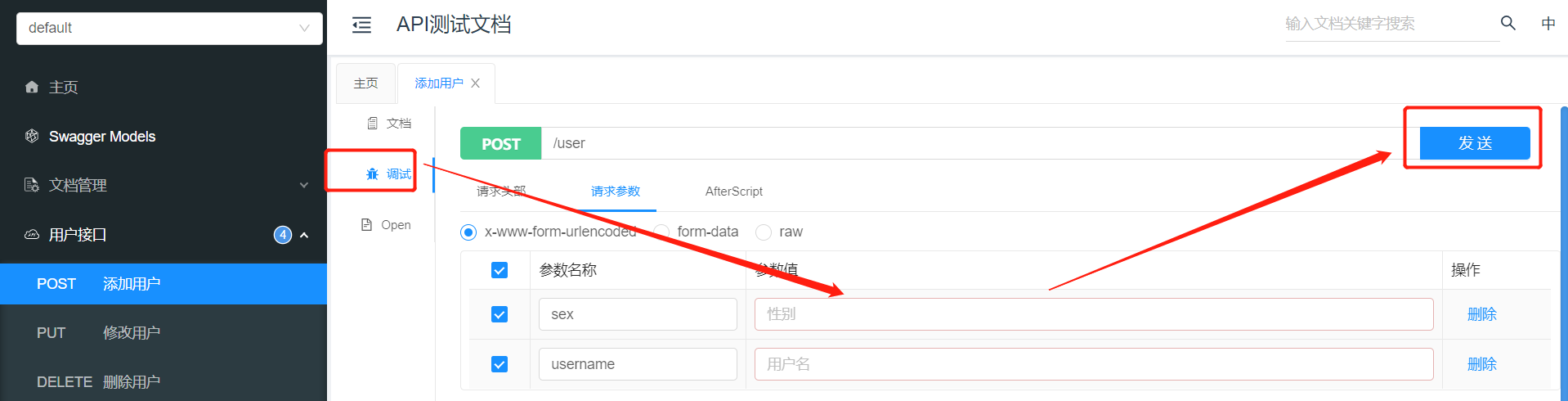

4）测试。启动项目，在浏览器输入http://localhost:8080/doc.html就可以看到接口的信息，展开接口，就能看到所有的接口详细信息。
