PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库,助力使用者训练出更好的模型,并应用落地。
近期更新
attetnion
模型导出 inference_model
超轻量级中文OCR,总模型仅8.6M
模型名称
模型简介
检测模型地址
识别模型地址
chinese_db_crnn_mobile
超轻量级中文OCR模型
chinese_db_crnn_server
通用中文OCR模型
超轻量级中文OCR在线体验地址:https://www.paddlepaddle.org.cn/hub/scene/ocr
也可以按如下教程快速体验超轻量级中文OCR和通用中文OCR模型。

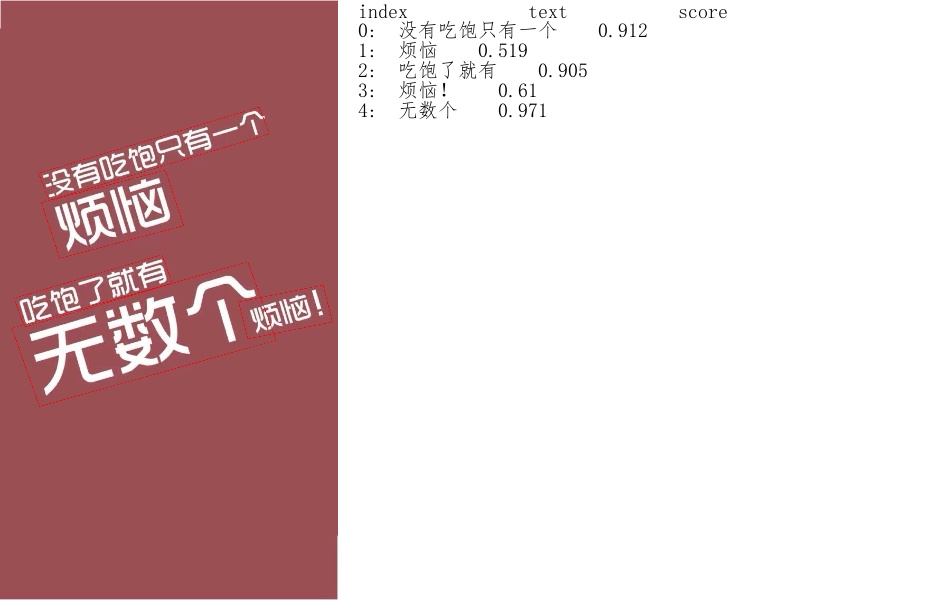

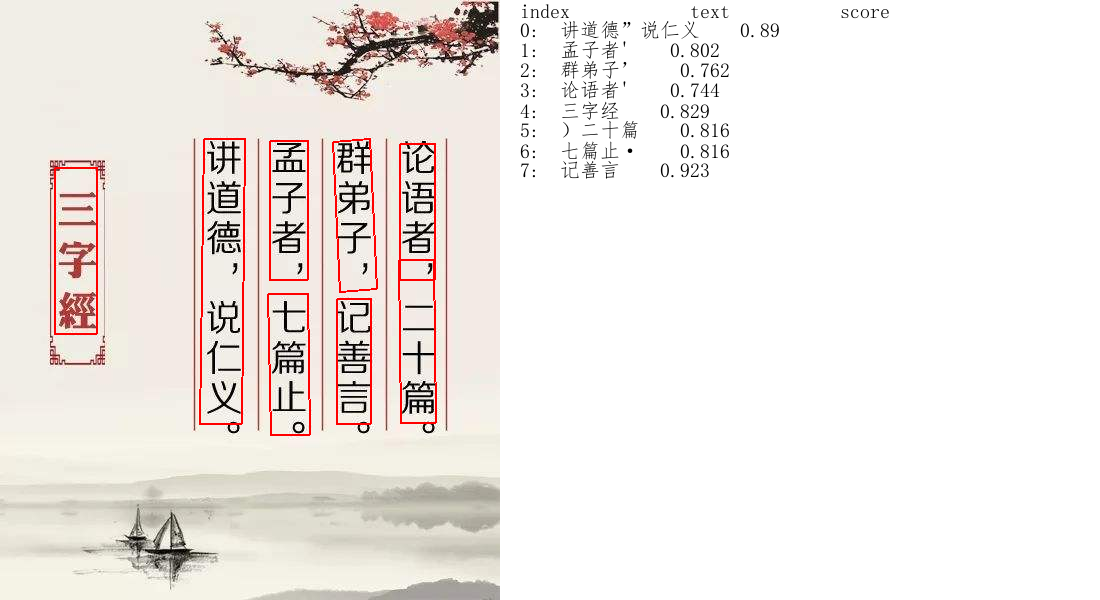

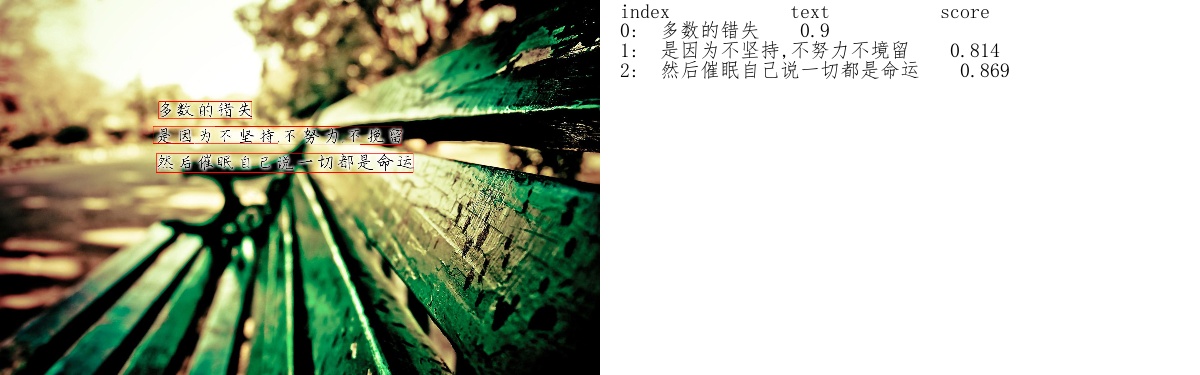

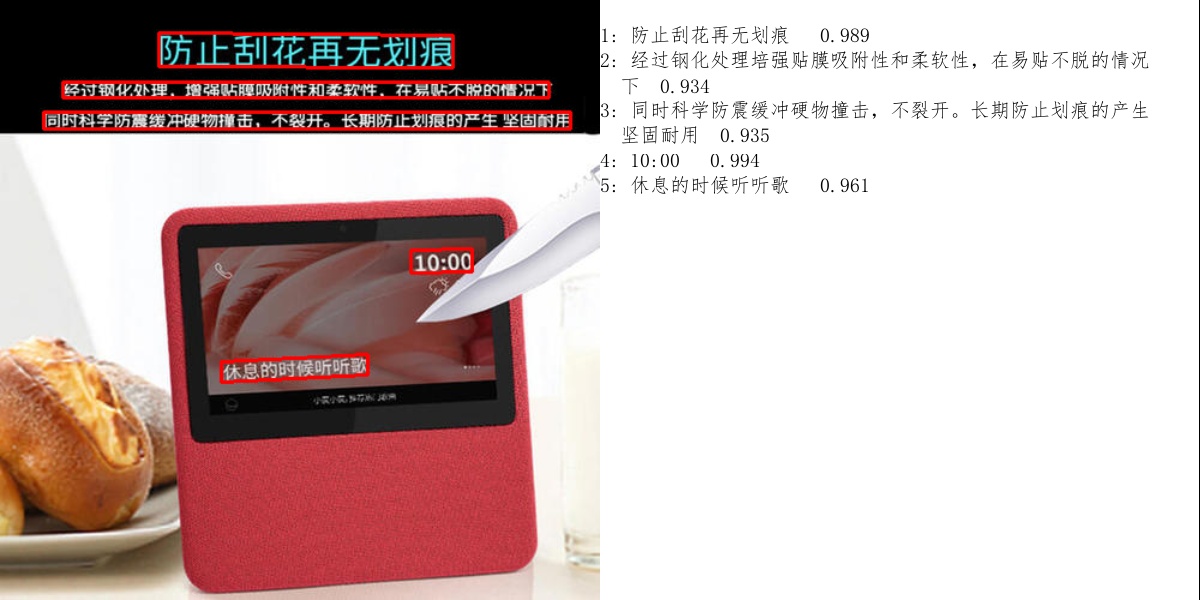

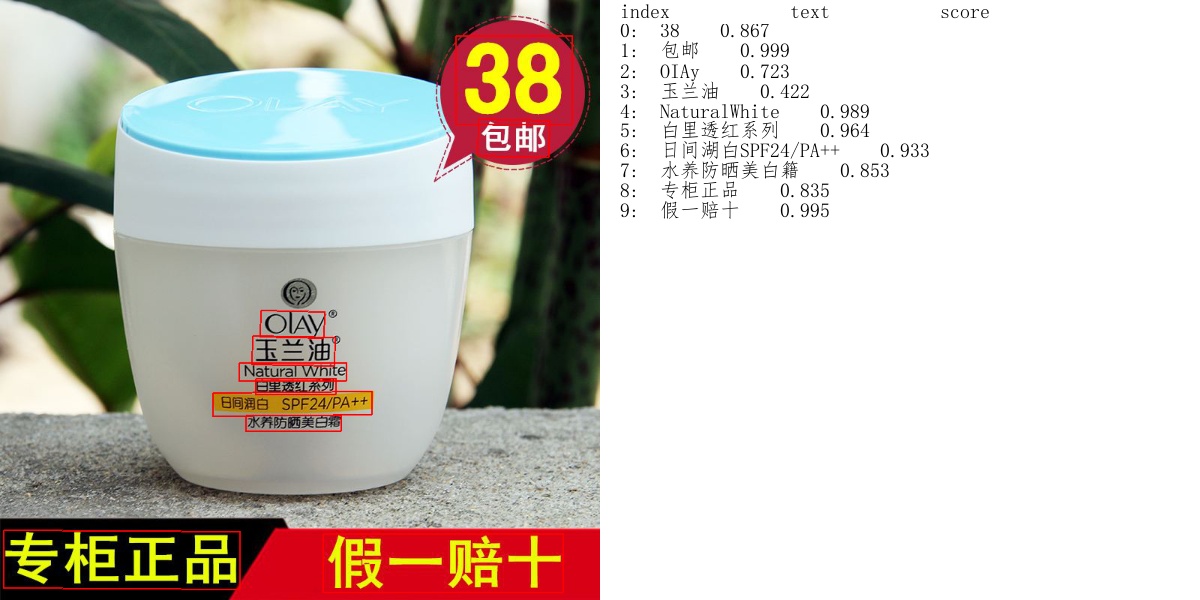

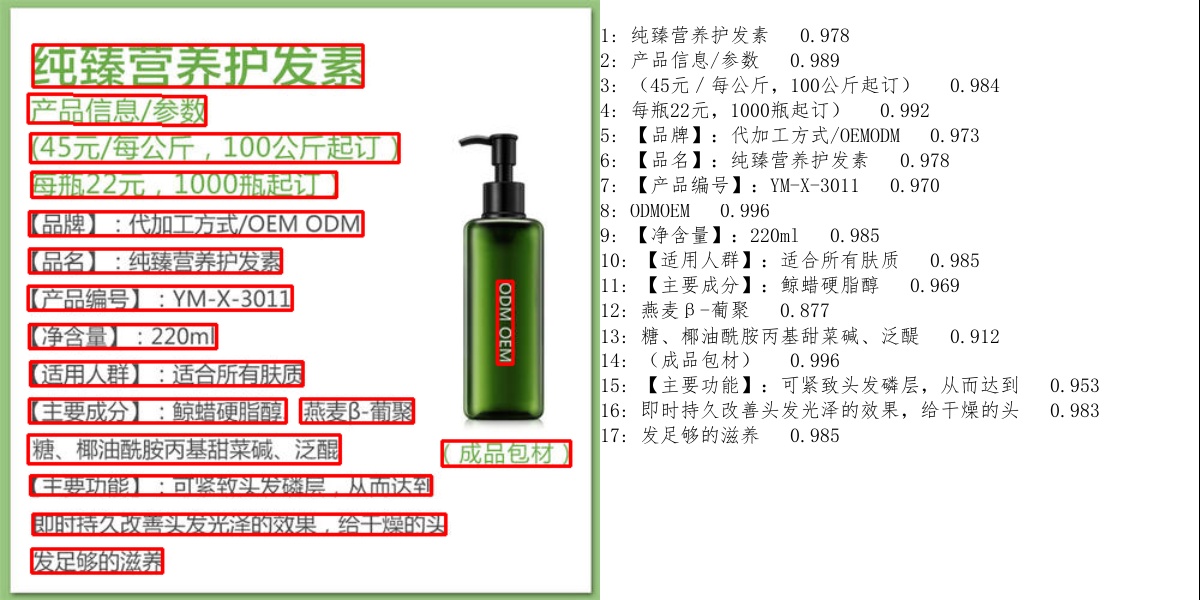

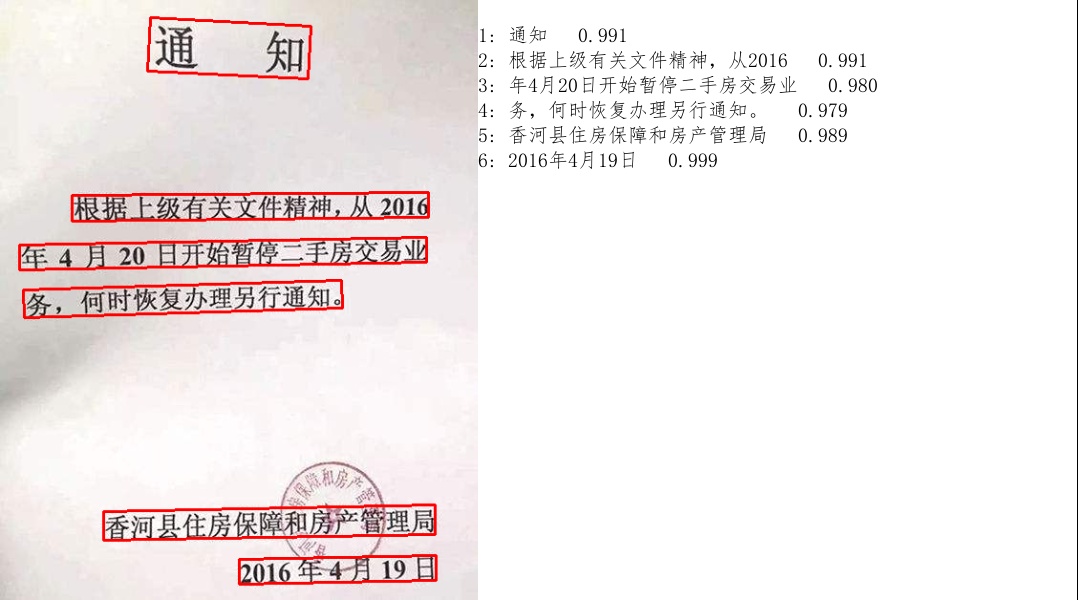

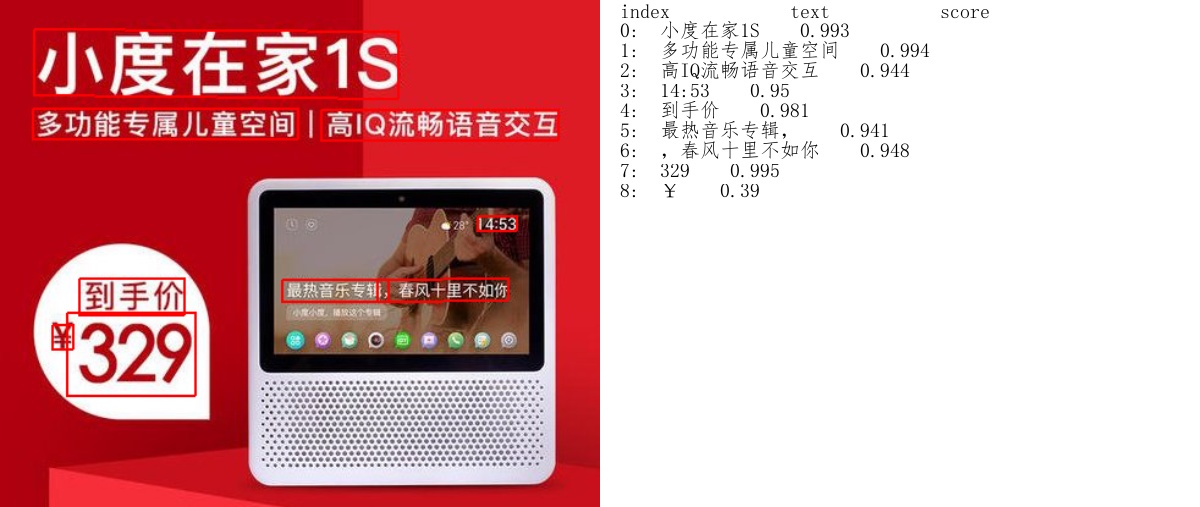

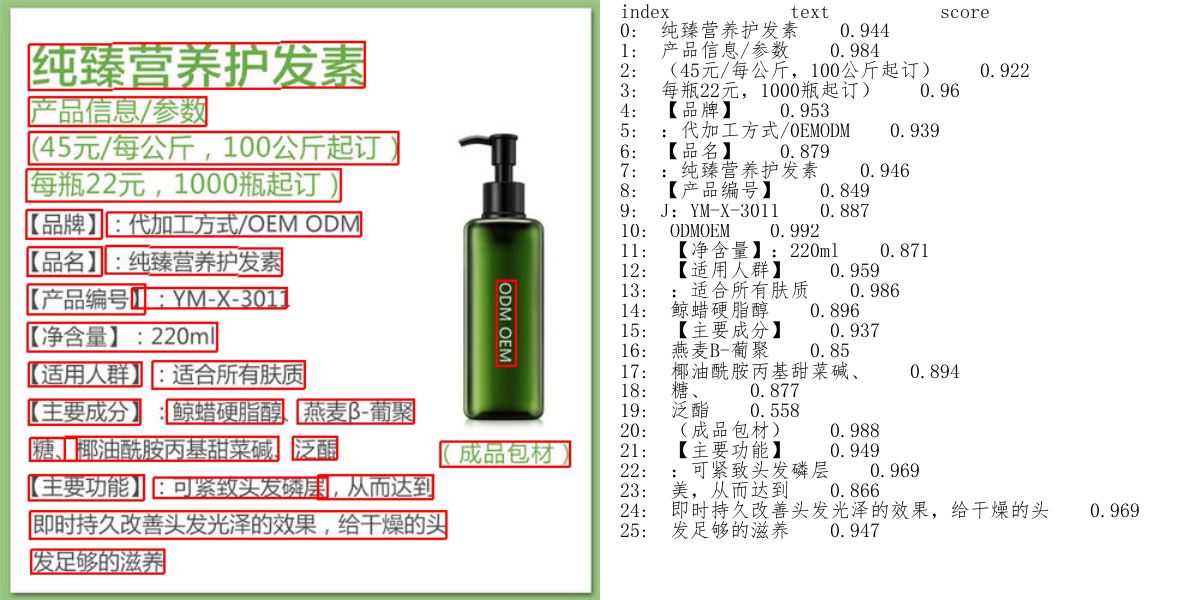

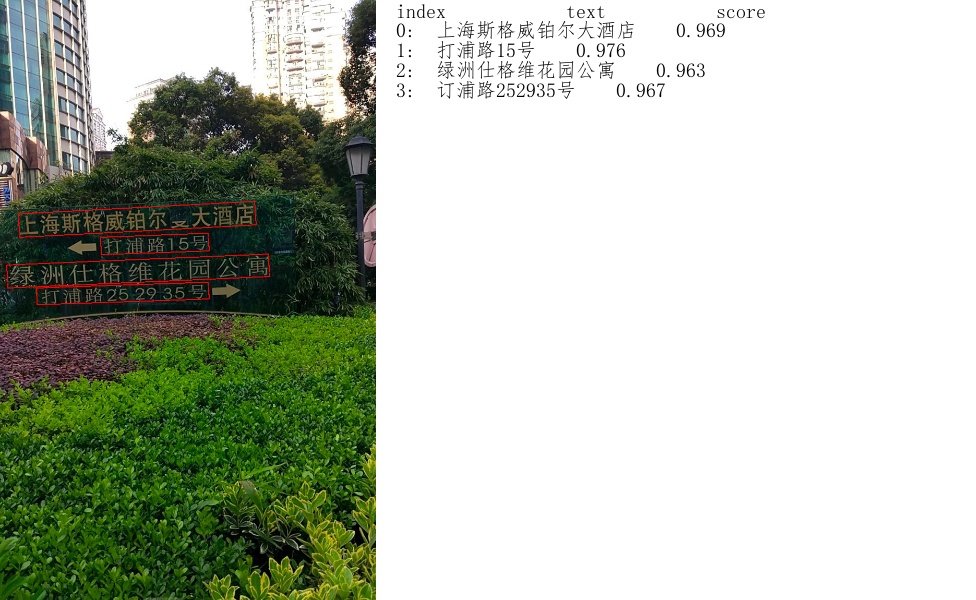

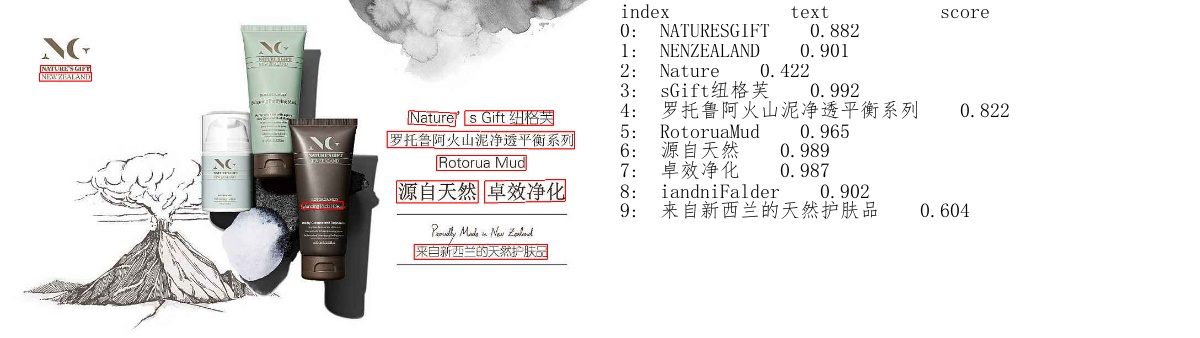

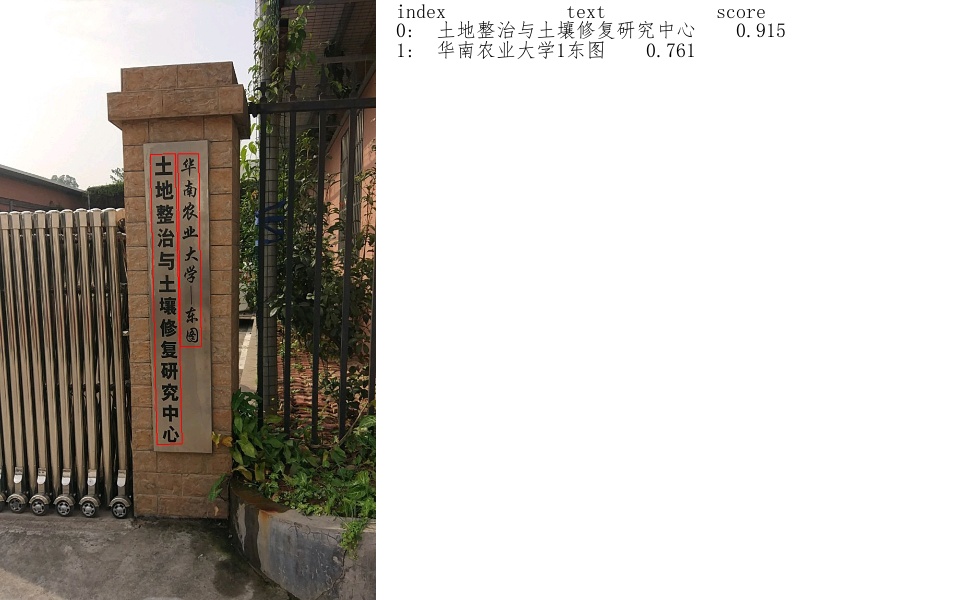

上图是超轻量级中文OCR模型效果展示,更多效果图请见文末超轻量级中文OCR效果展示和通用中文OCR效果展示。
请先参考快速安装配置PaddleOCR运行环境。
windows 环境下如果没有安装wget,下载模型时可将链接复制到浏览器中下载,并解压放置在相应目录下
mkdir inference && cd inference
# 下载超轻量级中文OCR模型的检测模型并解压
wget https://paddleocr.bj.bcebos.com/ch_models/ch_det_mv3_db_infer.tar && tar xf ch_det_mv3_db_infer.tar
# 下载超轻量级中文OCR模型的识别模型并解压
wget https://paddleocr.bj.bcebos.com/ch_models/ch_rec_mv3_crnn_infer.tar && tar xf ch_rec_mv3_crnn_infer.tar
cd ..
mkdir inference && cd inference
# 下载通用中文OCR模型的检测模型并解压
wget https://paddleocr.bj.bcebos.com/ch_models/ch_det_r50_vd_db_infer.tar && tar xf ch_det_r50_vd_db_infer.tar
# 下载通用中文OCR模型的识别模型并解压
wget https://paddleocr.bj.bcebos.com/ch_models/ch_rec_r34_vd_crnn_infer.tar && tar xf ch_rec_r34_vd_crnn_infer.tar
cd ..
以下代码实现了文本检测、识别串联推理,在执行预测时,需要通过参数image_dir指定单张图像或者图像集合的路径、参数det_model_dir指定检测inference模型的路径和参数rec_model_dir指定识别inference模型的路径。可视化识别结果默认保存到 ./inference_results 文件夹里面。
# 设置PYTHONPATH环境变量
export PYTHONPATH=.
# windows下设置环境变量
SET PYTHONPATH=.
# 预测image_dir指定的单张图像
python3 tools/infer/predict_system.py --image_dir="./doc/imgs/11.jpg" --det_model_dir="./inference/ch_det_mv3_db/" --rec_model_dir="./inference/ch_rec_mv3_crnn/"
# 预测image_dir指定的图像集合
python3 tools/infer/predict_system.py --image_dir="./doc/imgs/" --det_model_dir="./inference/ch_det_mv3_db/" --rec_model_dir="./inference/ch_rec_mv3_crnn/"
# 如果想使用CPU进行预测,需设置use_gpu参数为False
python3 tools/infer/predict_system.py --image_dir="./doc/imgs/11.jpg" --det_model_dir="./inference/ch_det_mv3_db/" --rec_model_dir="./inference/ch_rec_mv3_crnn/" --use_gpu=False
通用中文OCR模型的体验可以按照上述步骤下载相应的模型,并且更新相关的参数,示例如下:
# 预测image_dir指定的单张图像
python3 tools/infer/predict_system.py --image_dir="./doc/imgs/11.jpg" --det_model_dir="./inference/ch_det_r50_vd_db/" --rec_model_dir="./inference/ch_rec_r34_vd_crnn/"
更多的文本检测、识别串联推理使用方式请参考文档教程中基于预测引擎推理。
PaddleOCR开源的文本检测算法列表:
在ICDAR2015文本检测公开数据集上,算法效果如下:
模型
骨干网络
precision
recall
Hmean
下载链接
EAST
ResNet50_vd
88.18%
85.51%
86.82%
EAST
MobileNetV3
81.67%
79.83%
80.74%
DB
ResNet50_vd
83.79%
80.65%
82.19%
DB
MobileNetV3
75.92%
73.18%
74.53%
使用LSVT街景数据集共3w张数据,训练中文检测模型的相关配置和预训练文件如下:
模型
骨干网络
配置文件
预训练模型
超轻量中文模型
MobileNetV3
det_mv3_db.yml
通用中文OCR模型
ResNet50_vd
det_r50_vd_db.yml
PaddleOCR文本检测算法的训练和使用请参考文档教程中文本检测模型训练/评估/预测。
PaddleOCR开源的文本识别算法列表:
参考DTRB文字识别训练和评估流程,使用MJSynth和SynthText两个文字识别数据集训练,在IIIT, SVT, IC03, IC13, IC15, SVTP, CUTE数据集上进行评估,算法效果如下:
模型
骨干网络
Avg Accuracy
模型存储命名
下载链接
Rosetta
Resnet34_vd
80.24%
rec_r34_vd_none_none_ctc
Rosetta
MobileNetV3
78.16%
rec_mv3_none_none_ctc
CRNN
Resnet34_vd
82.20%
rec_r34_vd_none_bilstm_ctc
CRNN
MobileNetV3
79.37%
rec_mv3_none_bilstm_ctc
STAR-Net
Resnet34_vd
83.93%
rec_r34_vd_tps_bilstm_ctc
STAR-Net
MobileNetV3
81.56%
rec_mv3_tps_bilstm_ctc
RARE
Resnet34_vd
84.90%
rec_r34_vd_tps_bilstm_attn
RARE
MobileNetV3
83.32%
rec_mv3_tps_bilstm_attn
使用LSVT街景数据集根据真值将图crop出来30w数据,进行位置校准。此外基于LSVT语料生成500w合成数据训练中文模型,相关配置和预训练文件如下:
模型
骨干网络
配置文件
预训练模型
超轻量中文模型
MobileNetV3
rec_chinese_lite_train.yml
通用中文OCR模型
Resnet34_vd
rec_chinese_common_train.yml
PaddleOCR文本识别算法的训练和使用请参考文档教程中文本识别模型训练/评估/预测。
加微信:paddlehelp,备注OCR,小助手拉你进群~
1. EAST:
@inproceedings{zhou2017east,
title={EAST: an efficient and accurate scene text detector},
author={Zhou, Xinyu and Yao, Cong and Wen, He and Wang, Yuzhi and Zhou, Shuchang and He, Weiran and Liang, Jiajun},
booktitle={Proceedings of the IEEE conference on Computer Vision and Pattern Recognition},
pages={5551--5560},
year={2017}
}
2. DB:
@article{liao2019real,
title={Real-time Scene Text Detection with Differentiable Binarization},
author={Liao, Minghui and Wan, Zhaoyi and Yao, Cong and Chen, Kai and Bai, Xiang},
journal={arXiv preprint arXiv:1911.08947},
year={2019}
}
3. DTRB:
@inproceedings{baek2019wrong,
title={What is wrong with scene text recognition model comparisons? dataset and model analysis},
author={Baek, Jeonghun and Kim, Geewook and Lee, Junyeop and Park, Sungrae and Han, Dongyoon and Yun, Sangdoo and Oh, Seong Joon and Lee, Hwalsuk},
booktitle={Proceedings of the IEEE International Conference on Computer Vision},
pages={4715--4723},
year={2019}
}
4. SAST:
@inproceedings{wang2019single,
title={A Single-Shot Arbitrarily-Shaped Text Detector based on Context Attended Multi-Task Learning},
author={Wang, Pengfei and Zhang, Chengquan and Qi, Fei and Huang, Zuming and En, Mengyi and Han, Junyu and Liu, Jingtuo and Ding, Errui and Shi, Guangming},
booktitle={Proceedings of the 27th ACM International Conference on Multimedia},
pages={1277--1285},
year={2019}
}
5. SRN:
@article{yu2020towards,
title={Towards Accurate Scene Text Recognition with Semantic Reasoning Networks},
author={Yu, Deli and Li, Xuan and Zhang, Chengquan and Han, Junyu and Liu, Jingtuo and Ding, Errui},
journal={arXiv preprint arXiv:2003.12294},
year={2020}
}
6. end2end-psl:
@inproceedings{sun2019chinese,
title={Chinese Street View Text: Large-scale Chinese Text Reading with Partially Supervised Learning},
author={Sun, Yipeng and Liu, Jiaming and Liu, Wei and Han, Junyu and Ding, Errui and Liu, Jingtuo},
booktitle={Proceedings of the IEEE International Conference on Computer Vision},
pages={9086--9095},
year={2019}
}
本项目的发布受Apache 2.0 license许可认证。
我们非常欢迎你为PaddleOCR贡献代码,也十分感谢你的反馈。
