背景：
最近公司因为用的云服务器，需要保证kafka的安全性。可喜的是kafka0.9开始，已经支持权限控制了。网上中文资料又少，特此基于kafka0.9，记录kafaka的权限控制 ( flume需要1.7及其以上才支持kafka的SSL认证)。
下面各位看官跟着小二一起开始kafak权限认证之旅吧！嘎嘎嘎！
介绍：
kafka权限控制整体可以分为三种类型：
1.基于SSL(CDH 5.8不支持)
2.基于Kerberos(此认证一般基于CDH，本文不与讨论)
3.基于acl的 (CDH5.8中的kafka2.X不支持 )
本文主要基于apace版本的，实现1和3，也是用的最多的展开讨论。
统一说明：
在本文中&符号表示注释
一，准备工作
组件分布
kafka centos11，centos12，centos13
zoopeeker centos11，centos12，centos13
二、在kafka集群任选一台机子 ( 先介绍基于SSL的 )
密码统一为123456
&Step 1 Generate SSL key and certificate for each Kafka broker
keytool -keystore server.keystore.jks -alias centos11 -validity 365 -genkey
%Step 2 Creating your own CA
openssl req -new -x509 -keyout ca-key -out ca-cert -days 365
keytool -keystore server.truststore.jks -alias CARoot -import -file ca-cert
keytool -keystore client.truststore.jks -alias CARoot -import -file ca-cert
&Step 3 Signing the certificate
keytool -keystore server.keystore.jks -alias centos11 -certreq -file cert-file
openssl x509 -req -CA ca-cert -CAkey ca-key -in cert-file -out cert-signed -days 365 -CAcreateserial -passin pass:123456
keytool -keystore server.keystore.jks -alias CARoot -import -file ca-cert
keytool -keystore server.keystore.jks -alias centos11 -import -file cert-signed三、其他的kafka集群
&机器centos13 centos12
keytool -keystore kafka.client.keystore.jks -alias centos13 -validity 365 -genkey
keytool -keystore kafka.client.keystore.jks -alias centos13 -certreq -file cert-file
cp cert-file cert-file-centos13
¢os11
scp ./ca* ce* server* root@centos13:/opt/kafka_2.10/
openssl x509 -req -CA ca-cert -CAkey ca-key -in cert-file-centos13 -out cert-signed-centos13 -days 365 -CAcreateserial -passin pass:123456
keytool -keystore kafkacentos13.client.keystore.jks -alias CARoot -import -file ca-cert
keytool -keystore kafkacentos13.client.keystore.jks -alias centos13 -import -file cert-signed-centos13
rm -rf producer.properties
echo "bootstrap.servers=centos13:9093" >> producer.properties
echo "security.protocol=SSL" >> producer.properties
echo "ssl.truststore.location=/opt/kafka_2.10/kafkacentos12.client.keystore.jks">> producer.properties
echo "ssl.truststore.password=123456">> producer.properties
echo "ssl.keystore.location=/opt/kafka_2.10/server.keystore.jks">> producer.properties
echo "ssl.keystore.password=123456">> producer.properties
echo "ssl.key.password=123456">> producer.properties 4.验证：
openssl s_client -debug -connect localhost:9093 -tls1
output:
-----BEGIN CERTIFICATE-----
{variable sized random bytes}
-----END CERTIFICATE-----
subject=/C=US/ST=CA/L=Santa Clara/O=org/OU=org/CN=Sriharsha Chintalapani
issuer=/C=US/ST=CA/L=Santa Clara/O=org/OU=org/CN=kafka/emailAddress=test@test.com5.使用：
bin/kafka-console-consumer.sh --bootstrap-server kafka2:9093 --topic test --new-consumer --consumer.config config/producer.properties
bin/kafka-console-producer.sh --broker-list centos11:9093 --topic test --producer.config ./config/producer.properties
bin/kafka-console-consumer.sh --bootstrap-server centos11:9093 --topic test --new-consumer --consumer.config ./config/producer.properties
bin/kafka-console-consumer.sh --bootstrap-server centos13:9093 --topic test --new-consumer --consumer.config ./config/producer.properties --from-beginning6.基于ACL
server.properties中加配置
allow.everyone.if.no.acl.found=true
super.users=User:root
authorizer.class.name=kafka.security.auth.SimpleAclAuthorizer
principal.builder.class=org.apache.kafka.common.security.auth.DefaultPrincipalBuilder 7.ACL的简单使用：
bin/kafka-acls.sh --authorizer-properties zookeeper.connect=centos11:2181 --add --allow-principal User:Bob --allow-principal User:Alice --allow-host 198.51.100.0 --allow-host 198.51.100.1 --operation Read --operation Write --topic test
bin/kafka-acls.sh --authorizer-properties zookeeper.connect=centos11:2181 --remove --allow-principal User:Bob --allow-principal User:Alice --allow-host 198.51.100.0 --allow-host 198.51.100.1 --operation Read --operation Write --topic test8.Java Demo
需要将server.keystore.jks、client.truststore.jks从任一台机器上拷贝下来即可。
SSL is supported only for the new Kafka Producer and Consumer, the older API is not supported
ConsumerDemo
package xmhd.examples;
import org.apache.kafka.clients.CommonClientConfigs;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.common.config.SslConfigs;
import java.util.Arrays;
import java.util.Properties;
/**
* Created by shengjk1.
* blog address :http://blog.csdn.net/jsjsjs1789
*
* 生产者可以保证权限认证
* SSL is supported only for the new Kafka Producer and Consumer, the older API is not supported
*/
public class ConsumerZbdba {
public static void main(String[] args) {
// new ConsumerZbdba("test").start();// 使用kafka集群中创建好的主题 test
Properties props = new Properties();
/* 定义kakfa 服务的地址，不需要将所有broker指定上 */
props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "centos11:9093;centos13:9093;centos12:9093");
/* 制定consumer group */
props.put("group.id", "test");
props.put("auto.offset.reset","earliest");
/* 是否自动确认offset */
// props.put("enable.auto.commit", "true");
// props.put(ProducerConfig.CLIENT_ID_CONFIG, "myApiKey");
props.put(SslConfigs.SSL_KEYSTORE_LOCATION_CONFIG, "F:\\server.keystore.jks");
props.put(SslConfigs.SSL_KEYSTORE_PASSWORD_CONFIG, "123456");
props.put(SslConfigs.SSL_TRUSTSTORE_LOCATION_CONFIG, "F:\\client.truststore.jks");
props.put(SslConfigs.SSL_TRUSTSTORE_PASSWORD_CONFIG, "123456");
props.put(SslConfigs.SSL_TRUSTSTORE_TYPE_CONFIG, "JKS");
props.put(CommonClientConfigs.SECURITY_PROTOCOL_CONFIG, "SSL");
//
///* 自动确认offset的时间间隔 */
// props.put("auto.commit.interval.ms", "1000");
// props.put("session.timeout.ms", "30000");
/* key的序列化类 */
props.put("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
/* value的序列化类 */
props.put("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
/* 定义consumer */
KafkaConsumer<String, String> consumer = new KafkaConsumer<>(props);
/* 消费者订阅的topic, 可同时订阅多个 */
consumer.subscribe(Arrays.asList("test"));
/* 读取数据，读取超时时间为100ms */
while (true) {
ConsumerRecords<String, String> records = consumer.poll(100);
for (ConsumerRecord<String, String> record : records)
System.out.printf("offset = %d, key = %s, value = %s", record.offset(), record.key(), record.value()+"\n");
}
}
}ProducerDemo
package xmhd.examples;
import org.apache.kafka.clients.CommonClientConfigs;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.common.config.SslConfigs;
import java.util.Properties;
/**
* Created by shengjk1.
* blog address :http://blog.csdn.net/jsjsjs1789
* 生产者可以保证权限认证
*/
public class ProducerZbdba {
public static void main(String[] args) {
Properties producerProps = new Properties();
producerProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "centos12:9093");
// producerProps.put(ProducerConfig.CLIENT_ID_CONFIG, "myApiKey");
producerProps.put(SslConfigs.SSL_KEYSTORE_LOCATION_CONFIG, "F:\\server.keystore.jks");
producerProps.put(SslConfigs.SSL_KEYSTORE_PASSWORD_CONFIG, "123456");
producerProps.put(SslConfigs.SSL_TRUSTSTORE_LOCATION_CONFIG, "F:\\client.truststore.jks");
producerProps.put(SslConfigs.SSL_TRUSTSTORE_PASSWORD_CONFIG, "123456");
producerProps.put(SslConfigs.SSL_TRUSTSTORE_TYPE_CONFIG, "JKS");
producerProps.put(CommonClientConfigs.SECURITY_PROTOCOL_CONFIG, "SSL");
producerProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
producerProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
KafkaProducer producer = new KafkaProducer(producerProps);
for(int i = 0; i < 100; i++)
producer.send(new ProducerRecord<String, String>("test", Integer.toString(i), Integer.toString(i)));
System.out.println("test");
producer.close();
}
} 8.1 flume1.7 的配置 (基于kafka SSL认证)
tier1.sources = source1
tier1.channels = channel1
tier1.sinks = sink1
tier1.sources.source1.type = exec
tier1.sources.source1.command = tail -F -n+1 /opt/scan.log
tier1.sources.source1.channels = channel1
tier1.channels.channel1.type = memory
tier1.sinks.sink1.type = org.apache.flume.sink.kafka.KafkaSink
tier1.sinks.sink1.topic = test
tier1.sinks.sink1.kafka.bootstrap.servers = centos11:9093,centos12:9093,centos13:9093
tier1.channels.channel1.kafka.bootstrap.servers = centos11:9093,centos12:9093,centos13:9093
tier1.sinks.sink1.requiredAcks = 1
tier1.sinks.sink1.batchSize = 100
tier1.sinks.sink1.kafka.producer.security.protocol = SSL
tier1.sinks.sink1.kafka.producer.ssl.truststore.type=JKS
tier1.sinks.sink1.kafka.producer.ssl.truststore.location = /opt/kafka_2.10/server.truststore.jks
tier1.sinks.sink1.kafka.producer.ssl.truststore.password =123456
tier1.sinks.sink1.kafka.producer.security.protocol = SSL
tier1.sinks.sink1.kafka.producer.ssl.keystore.location = /opt/kafka_2.10/server.keystore.jks
tier1.sinks.sink1.kafka.producer.ssl.keystore.password =123456
&tier1.sinks.sink1.kafka.producer.ssl.endpoint.identification.algorithm = HTTPS
tier1.sinks.sink1.channel = channel1
tier1.channels.channel1.capacity = 100
&tier1.channels.channel1.kafka.producer.security.protocol = SSL
&tier1.channels.channel1.kafka.producer.ssl.truststore.type=JKS
&tier1.channels.channel1.kafka.producer.ssl.truststore.location = /opt/kafka_2.10/server.truststore.jks
&tier1.channels.channel1.kafka.producer.ssl.truststore.password =123456
&tier1.channels.channel1.kafka.producer.security.protocol = SSL
&tier1.channels.channel1.kafka.producer.ssl.keystore.location = /opt/kafka_2.10/server.keystore.jks
&tier1.channels.channel1.kafka.producer.ssl.keystore.password =123456
&tier1.channels.channel1.kafka.producer.ssl.endpoint.identification.algorithm = HTTPS
&tier1.channels.channel1.kafka.consumer.security.protocol = SSL
&tier1.channels.channel1.kafka.consumer.ssl.truststore.location = /opt/kafka_2.10/server.truststore.jks
&tier1.channels.channel1.kafka.consumer.ssl.truststore.password =123456
&tier1.channels.channel1.kafka.consumer.security.protocol = SSL
&tier1.channels.channel1.kafka.consumer.ssl.keystore.location = /opt/kafka_2.10/server.truststore.jks
&tier1.channels.channel1.kafka.consumer.ssl.keystore.password =123456
&tier1.channels.channel1.kafka.consumer.ssl.endpoint.identification.algorithm = HTTPS9.kafak Server.properties最终版的
三台机子需保证一样，centos11为机器名，根据需要自行修改
broker.id=0
############################# Socket Server Settings #############################
&这一点可能需要特别的注意,PLAINTEXT注释掉之后，一些基本的kafka脚本都不在能用了
&listeners=PLAINTEXT://centos11:9092,SSL://centos11:9093
listeners=SSL://centos11:9093
advertised.listeners=SSL://centos11:9093
ssl.keystore.location=/opt/kafka_2.10/server.keystore.jks
ssl.keystore.password=123456
ssl.key.password=123456
ssl.truststore.location=/opt/kafka_2.10/server.truststore.jks
ssl.truststore.password=123456
ssl.client.auth=required
ssl.enabled.protocols=TLSv1.2,TLSv1.1,TLSv1
ssl.keystore.type=JKS
ssl.truststore.type=JKS
security.inter.broker.protocol=SSL
&acl
allow.everyone.if.no.acl.found=true
super.users=User:root
authorizer.class.name=kafka.security.auth.SimpleAclAuthorizer
principal.builder.class=org.apache.kafka.common.security.auth.DefaultPrincipalBuilder
host.name=centos11
advertised.host.name=centos11
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
############################# Log Basics #############################
log.dirs=/opt/kafka-logs
num.partitions=1
num.recovery.threads.per.data.dir=1
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
############################# Zookeeper #############################
zookeeper.connect=centos11:2181,centos12:2181,centos13:2181
zookeeper.connection.timeout.ms=6000kafka producer.properties
centos11为机器名，根据需求自行修改
bootstrap.servers=centos11:9093
security.protocol=SSL
ssl.truststore.location=/opt/kafka_2.10/client.truststore.jks
ssl.truststore.password=123456
ssl.keystore.location=/opt/kafka_2.10/server.keystore.jks
ssl.keystore.password=123456
ssl.key.password=12345610、参考网址：
具体细节可参考官网！
http://kafka.apache.org/090/documentation.html#security_authz
http://www.cloudera.com/documentation/kafka/latest/topics/kafka_security.html
http://blog.csdn.net/zbdba/article/details/52458654

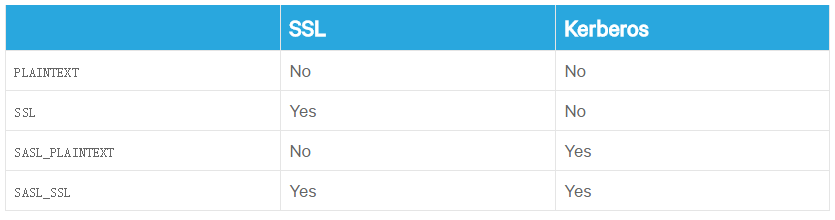

11.通信协议的支持情况
12.扩展阅读：
关于SSL原理 http://www.linuxde.net/2012/03/8301.html
